Home > Sensor Module > Temperature Module > DHT21/AM2301 Capacitive Digital Temperature Humidity Sensor

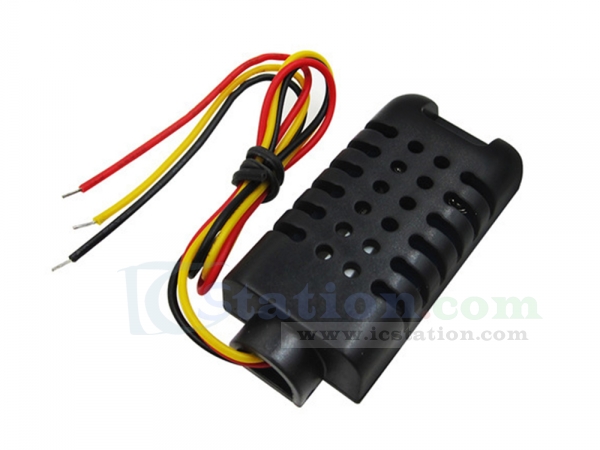

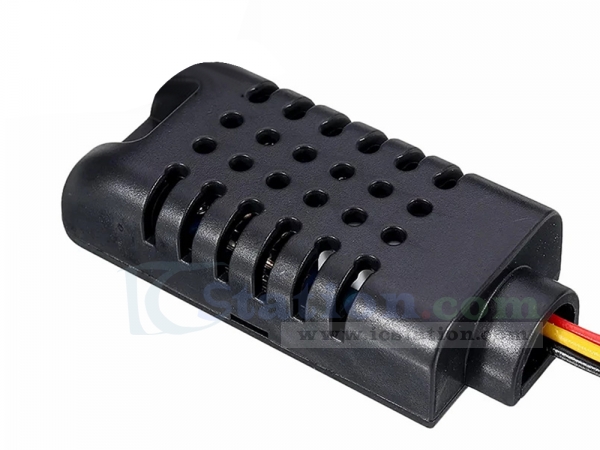

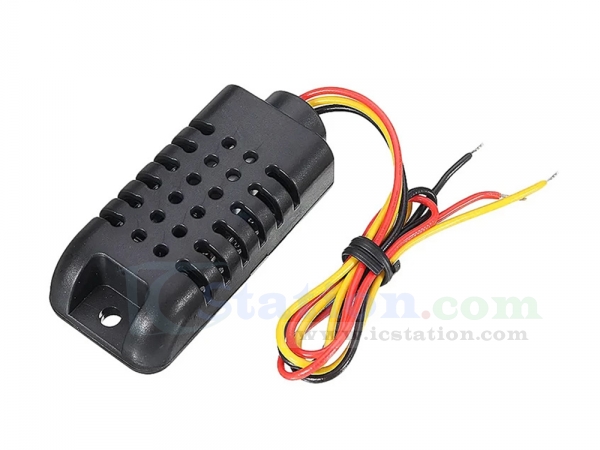

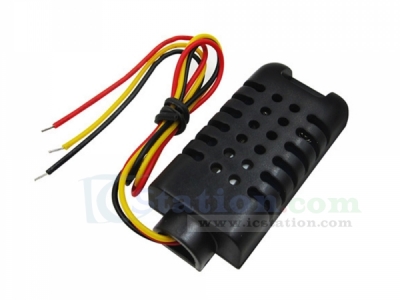

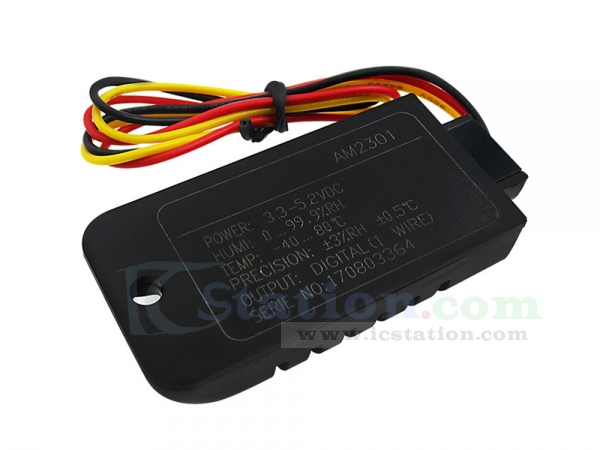

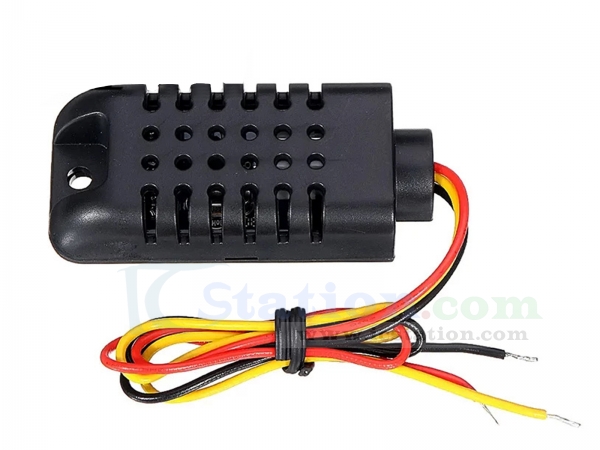

DHT21/AM2301 Capacitive Digital Temperature Humidity Sensor

GY19802
5 9
$7.99 $5.59
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
 It is a temperature and humidity sensor.It is a temperature and humidity composite sensor with a calibrated digital signal output.It uses digital module acquisition technology and temperature and humidity sensing technology to ensure that the product has high reliability and long-term stability.

2.Feature:
 1).The sensor includes a capacitive humidity sensing element and an NTC temperature measuring element,and is connected with a high-performance 8-bit single-chip microcomputer.
 2).It has the advantages of quality,ultra-fast response,strong anti-interference ability,and high cost performance.
 3).It uses a single-wire serial interface,which makes system integration simple and fast.
 4).It adopts ultra-small size,low power consumption,and the signal transmission distance can reach more than 20 meters,which can be used in harsh applications.
 5).The product is a 4-pin single-row pin package for easy connection.

3.Parameter:
 1).Product Name:Temperature and Humidity Sensor
 2).Supply Voltage:DC 3.3V-5.2V
 3).Humidity Resolution:0.1%RH
 4).Detecting Humidity Range:0-99.9%RH
 5).Detection Temperature Range:-40℃-80℃
 6).Accuracy of Detecting Humidity:+/-3%RH
 7).Detection Temperature Accuracy:+/-5℃
 8).Work Temperature:-25℃~85℃
 9).Work Humidity:5%~95%RH
 10).Size:60*27*14mm

4.Package:
  1pcs Temperature and Humidity Sensor
