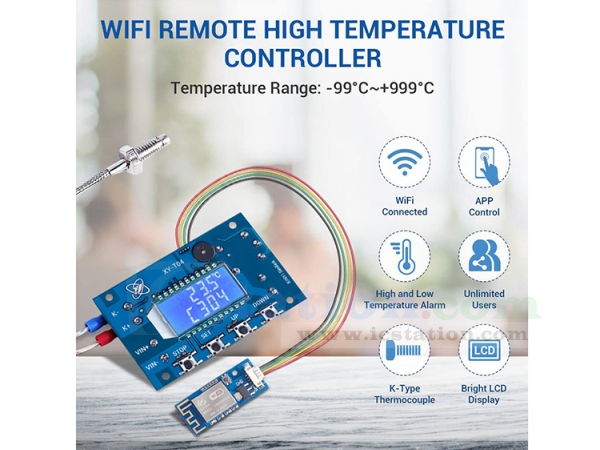

12V DC Digital Temperature Controller, WiFi APP Control High Temperature Control Module -99°C~999°C 24V Thermostat Control Switch Board with 10A One-Channel Relay Waterproof K-Type Thermocouple Probe

GY20338
5 9
$21.99 $15.39
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

About this item:

【APP CONTROL】Are you also worried about whether your heating equipment is working properly when you are not at home? Comes with a WiFi module, just connect to the WiFi network once and download the APP, you can monitor the temperature of the device you want to control in real time and set the value or turn it on or off at any time



【HIGH TEMPERATURE CONTROLLER】The temperature control range: -99°C~+999°C, you can freely control it on the APP, choose the temperature unit (°C or °F) , or choose the heating or cooling mode. Of course, it also supports setting directly through the buttons



【MULTIFUNCTIONAL】In addition to the freedom to choose the working mode (heating or cooling), it also has the function of delay start, temperature correction, high and low temperature alarm, emergency stop and sleep. If you operate on the APP, you can also see the past operation records



【K-TYPE THERMOCOUPLE】Comes with 1m waterproof temperature sensing probe, high sensitivity, good stability and high measurement accuracy



【RELAY SWITCH OUTPUT】The output of the thermostat is one-channel relay switch with a current of 10A, which can meet various high-power loads, working voltage: DC 6-30V, it can be widely used in smart home and industrial equipment, suitable for household appliances, office machines, greenhouses, etc.



How To Connect To The APP

Module Pairing
Download and register APP Sinilink. Users can get APP by scanning the QR code inside the package.
Connect to DC6V-30V power supply at input terminal. (Note: Please don’t connect to load before pairing and test.)
Make sure the module and phone are connected to the same WIFI. Note: It can work with 2.4G WIFI instead of 5G.
Pressing the button on WIFI module 5 seconds and it will enter into pairing mode.

APP Pairing
Click + on the right and select "Touch".
The WIFI name is automatically displayed and then enter the WIFI password which phone is connected. And then the next step.
Set device name and classification. And then the next step.
Waiting configuration about 1~3minute.
If the pairing fails, please try it several times (remove power supply).
Reset the module device name after connecting successfully.
Finished. You can test and set module parameters.

Specifications and Parameters
Product Name: Digital High Temperature Controller
Working Voltage: DC 6-30V
Maximum Current: 10A
Temperature Control Range: -99°C~+999°C
Temperature Measurement Accuracy: ±2°C
Output Type: One-Channel Relay Switch
Probe Type: K-Type Thermocouple
APP real-time monitoring and setting
Temperature correction
Emergency stop
Clear LCD display

High and Low Temperature Alarm                 APP Real-time Monitoring                              Shared by Multiple People

Precision Welding                                    Built-in WiFi Module                               Waterproof K-Type Thermocouple Probe
