30A PWM Driver 12V 24V 48V 72V DC Motor Governor Speed Controller 0%-100% LED Light Dimmer with Display Screen Programable

GY20766-1
5 9
$21.99 $15.39
Quantity5+10+
Price$15.00$14.50
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Introduction:

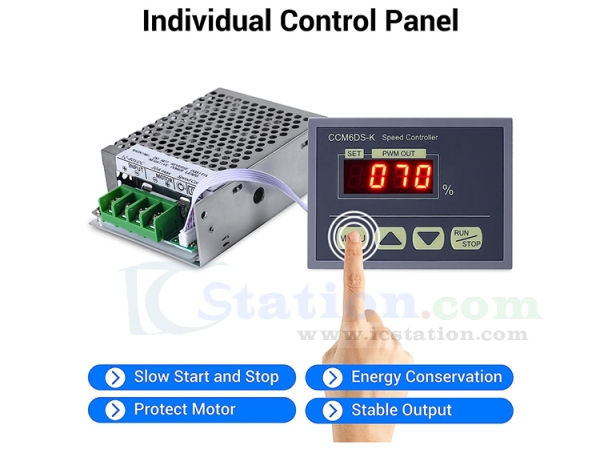

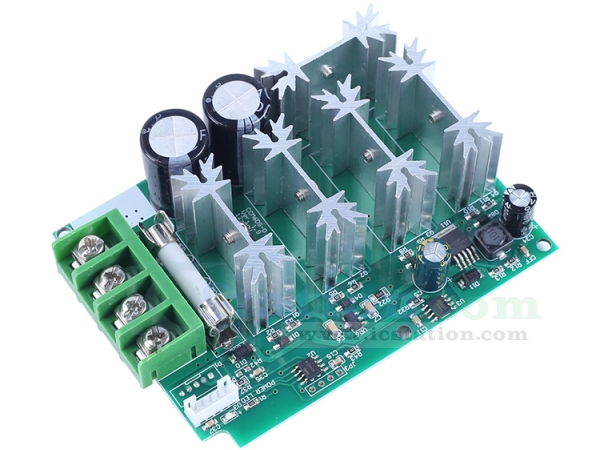

  CCM6DS-T is a DC12V-80V 30A 0%~100% PWM DC Motor Speed Controller with 30Amp Fuse. It can drive DC motor up to 30A with a CCM6DS-K control display panel. It is easy to use and can be directly connected to the motor and to adjust motor’s speed.



2.Feature:
  1>.Slow Start and Slow Stop
  2>.Dual 30Amp Fuse to protect circuit inside and motor
  3>.DC 12-80V wide voltage so that adapt to more DC motors
  4>.30A strong current output to provide enough driving capacity for the motor
  5>.Adjust PWM from 0% to 100% which can control motor’s speed



3.Parameter:
  1>.Product Name:CCM6DS-T 12-80V 30A PWM DC Motor Speed Controller
  2>.Work Voltage:DC 12V - 80V
  3>.Drive Current:30A(Max)
  4>.Control Power:12V/250W;24V/350W;48V/500W and so on;
  5>.Duty cycle:0%~100%(Adjustable)
  6>.Work Frequency:21KHz
  7>.Work Temperature:-20℃~85℃
  8>.Work Humidity:5%~85%RH

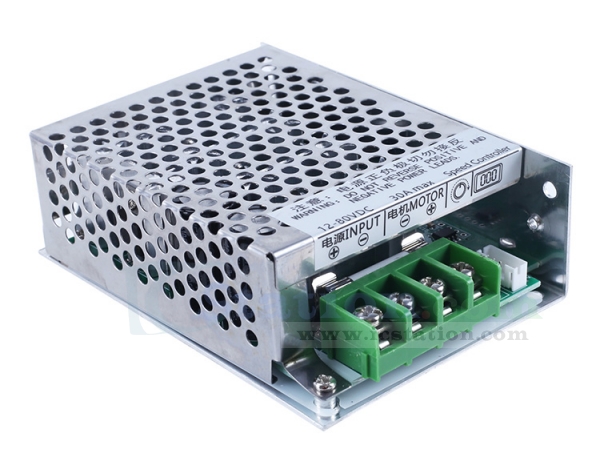

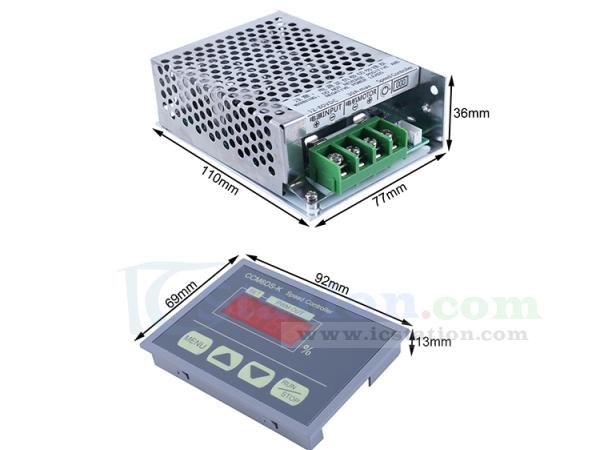

  9>.CCM6DS-T Size:110 x 77 x 36mm

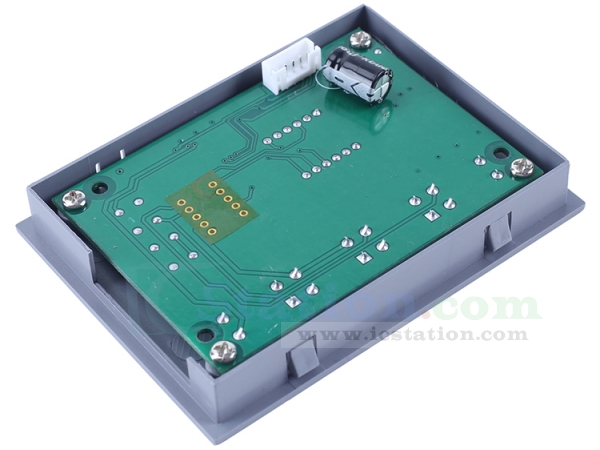

  10>.CCM6DS-K Size: 92 x 69 x 13mm

4.Set Parameter:

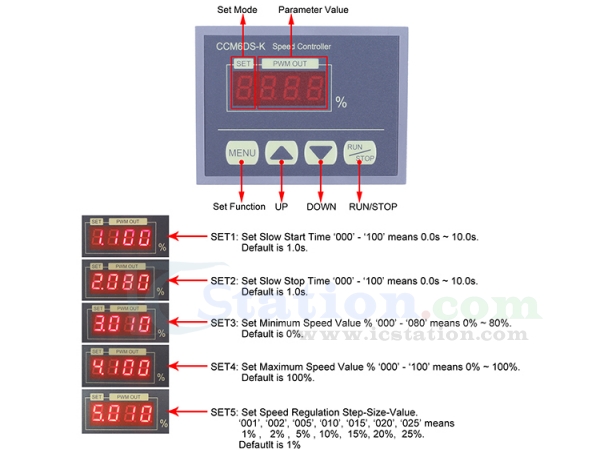

  1>.Press ‘MENU’ button enter into set mode and switch parameter SET1~SET5.
  2>.Press ‘UP’ and ‘DOWN’ buttons to change parameter value.Keep press can change value quickly.

  3>.The first bit is mode and the remaining 3 bits is mode parameter value.
  4>.E.g: display ‘2.010’ means that the current display mode is SET2 and the parameter value is ‘010’.

  5>.Press ‘RUN/STOP’ button to save parameter and exit set mode to start running.
  6>.’SET1’ Function: 000-100 and display as ‘1.xxx’ which is used to set motor slow start time. Time from starting to 100% speed. Set time range is 0~10.0s and the default value is 1s. So ‘xxx’ is 000 to 100. Note: ’090’ means 9.0s.

  7>.’SET2’ Function: 000-100 and display as ‘2.xxx’ which is used to set motor slow stop time. Time from press stop button to complete stop. Set time range is 0~10.0s and the default value is 1s. So ‘xxx’ is 000 to 100. Note: ’090’ means 9.0s.

  8>.’SET3’ Function: 000-080 and display as ‘3.xxx’ which is used to set minimum speed value. Set range is 0%~80% and the default value is 0%. So ‘xxx’ is 000 to 80. Note: ’070’ means 70%. This value must be less than SET4.

  9>.’SET4’ Function: 000-100 and display as ‘4.xxx’ which is used to set maximum speed value. Set range is 0%~100% and the default value is 100%. So ‘xxx’ is 000 to 100. Note: ’070’ means 70%. This value must be greater than SET3.

  10>.’SET5’ Function: 001, 002, 005, 010, 015, 020, 025 and display as ‘5.xxx’ which is used to set speed regulation step size value. In normal display status, each time you press the ‘UP’ or ‘DOWN’ button , the speed changes 1%, 2%, 5%, 10%, 15%, 20%, 25%.

5.Use Steps:
  1>.Select the matching power supply and DC motor.

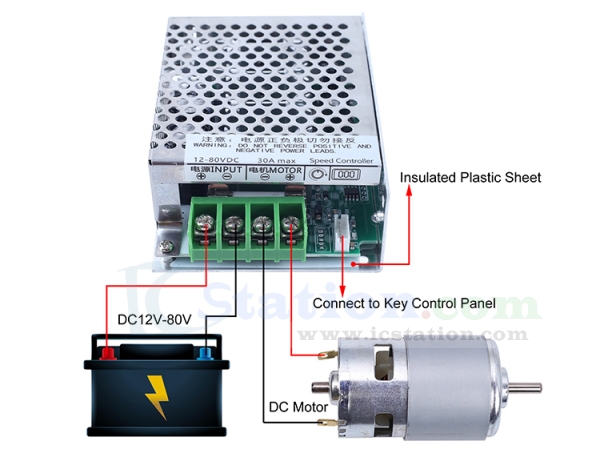

  2>.Connect DC motor at output terminal which has mark ‘MOTOR +’ and ‘MOTOR -’ as wiring diagram.
  3>.Connect motor driver and button/display panel by 5Pin wire.
  4>.Input work voltage at input terminal which has mark ‘INPUT+’ and ‘INPUT-’ as wiring diagram. Note:The positive and negative poles of the power supply must be connected correctly.
  5>.Set parameter and adjust motor speed.

6.Note:
  1>.It can output voltage same to input voltage.So the input voltage must match the motor’s work voltage.
  2>.Please pay attention to the positive and negative poles of the power supply. It can't be connected reversely.
  3>.It just can input DC power supply.

7.Application:
  1>.Cooling equipment control
  2>.Heating equipment control
  3>.Irrigation system
  4>.Lamp adjust brightness

8.Package:

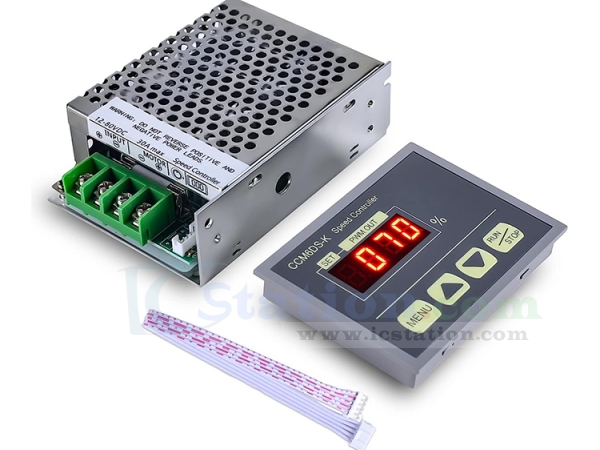

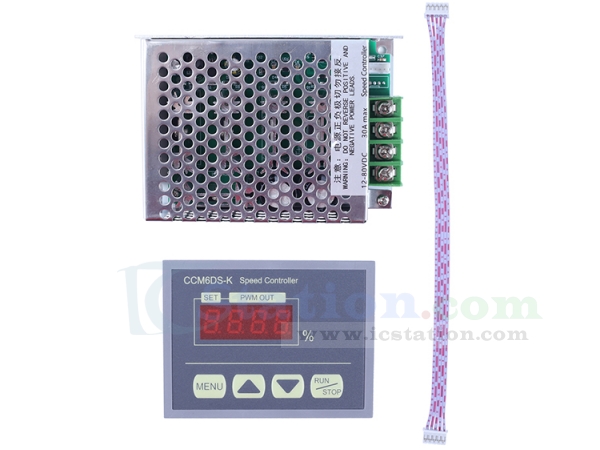

 1pcs CCM6DS-T 12-80V 30A PWM DC Motor Speed Controller
 1pcs CCM6DS-K Button/Display Control Panel
 1pcs 20cm PH2.0-5Pin Wire

Quantity5+10+
Price$15.00$14.50
