PIR Human Body Infrared Sensor Switch Infrared Motion Sensor Home Light Bulb Modification Controller

Item ID: GY19835

5 9

Price: ~~$5.99~~ $4.19

Time Remaining:

Quantity: - OR - - OR - Add to Wish List

Prev: Hand Sweep Switch Controller DC 12V-24V Infrared Sensor Switch Sensor Cabinet Light Smart Switch
Next: HC-SR501 Human Infrared Sensor Module with Lens

1.Description:

It is a human body infrared sensor switch.

It controls the light by sensing the movement of the human body.

When a person moves within the sensing range,the switch will automatically delay and remain connected.If the person is still,the switch will stop responding.

The first time the power is turned on,there will be a one-minute start-up time. During this period,the device will glow,which is normal.

2.Feature:

1).Its sensing distance is long,up to 3-5 meters,which is suitable for most houses.

2).The sensing angle is large,and the sensing range is large.

3).It has a long delay time,which can be delayed for 20 seconds.

3.Parameter:

1).Product Name:Human Body Infrared Sensor Switch

2).Rated Voltage:220V

3).Rated Frequency:50Hz

4).Load Power:100W(Filament),30W(Energy-saving lamp),18W(LED)

5).Sensing Distance:3-5m (high temperature will affect switch sensitivity)

6).Delay Time:20s

7).Sensing Angle:110°

8).Work Temperature:-25℃~85℃

9).Work Humidity:5%~95%RH

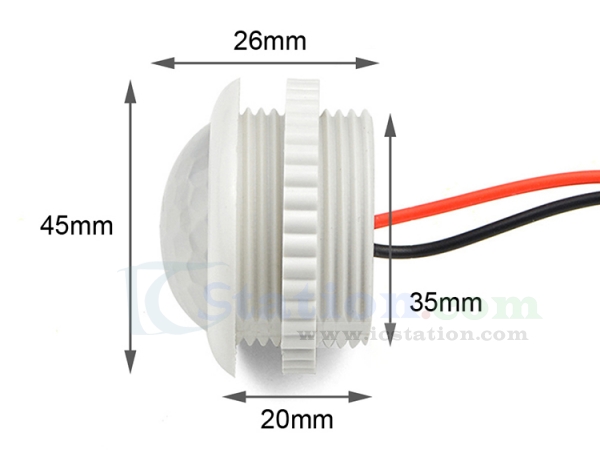

10).Size:45*45*26mm

4.Package:

1pcs Human Body Infrared Sensor Switch
