TPA3116D2 2x50W Dual Channel Class D Amplifier 50W+50W Mini Digital Amplifier Board Module XH-M562 DC 12V-24V

12548
5 9
$3.99 $2.79
Quantity10+
Price$3.49
Time Remaining:
- OR - Add to Wish List

Description:
 This product is a mini size built-in TPA3116D2 chip with the power of 2*50W channel digital power amplifier board.


Parameters:

Parameter Value
Chip TPA3116D2
Supply voltage DC12-24V
Output power 50W*2
Vocal tract number 2(Left+Right channel)
Size 37.2*25.6mm

Pin Definition:

Board Size:



I. Tested by ICStation's Outstanding Partner ElectroTodos:

Learn More Details in the Video:
(The language in the video is Spanish)

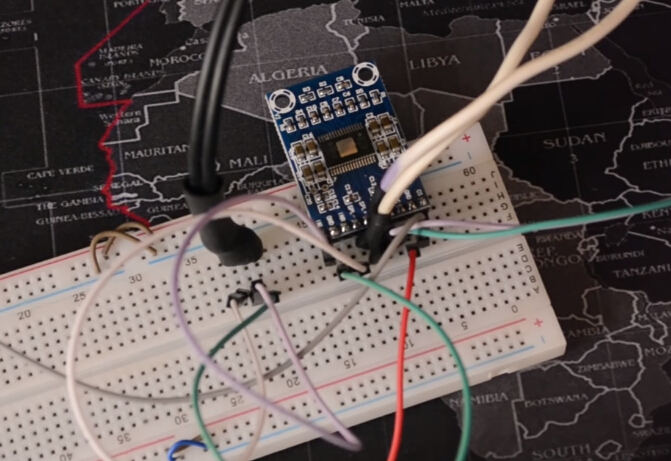

II. Tested by ICStation's Outstanding Partner Electricguy:

Kindly Note from
@Electricguy:
It requires a heatsink for powers above approx 2x2W. Otherwise it will sevrerely overheat. Please take a note, thanks for your attention. :)

Learn More Details in the Video:
(The language in the video is English)
