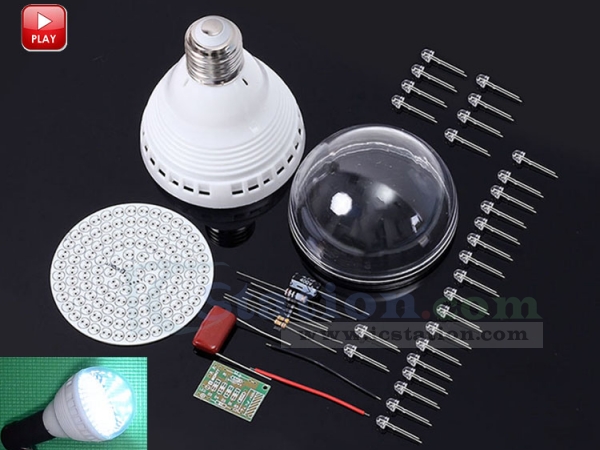

White LED Lamp Bulb PCB Light Board 120pcs LEDs Energy Saving Lamp DIY Kit Module AC 85V-277V with E27 Base

12480
5 9
$5.99 $4.19
Quantity5+10+20+
Price$5.35$4.99$4.35
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$11.19-5%Bundled Price:$10.63

Description:
Please confirm that the lamp can be lit and then install the lampshade, because the lamp cover is not easy to remove it once installed.
LED energy-saving lamps for its energy saving, environmental protection, long life and other characteristics, is increasingly widely used, the package features are as follows:

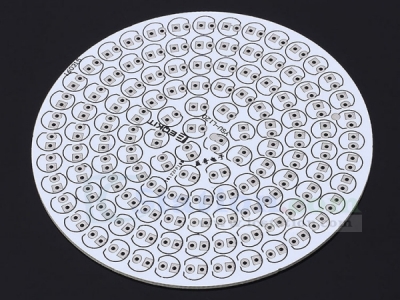

1>. Light board with series and parallel structure design, better than the use of pure series structure of the light board, can extend the lamp life.
2>. Power board, light board produced by the military grade A material, the pad can withstand repeated welding and will not fall off.
3>. Selected matching lamp beads using a large chip package, low light (5000 hours 3%), consistency is good.

Parameter:

NO. Parameter Value
1 Model YSU-L120
2 Shade diameter 80mm
3 Height (including lamp) 130mm
4 Power 6W
5 Voltage 85-277V AC
6 Luminous flux 280-320LM
7 Shade transparent color


Circuit principle:
The circuit consists of three parts: buck, rectification and filtering
1>.C1, R1 composition RC capacitor circuit, the 220V AC power required for the circuit required low-voltage alternating current.
2>.D1 - D4 composed of bridge rectifier circuit, the low - voltage alternating current rectifier pulse power.
3>.C2 filter, filter out the pulsating DC clutter, the formation of smooth DC, parallel R3 can effectively improve the effect of balanced voltage.
4>.R2 for the LED lamp beads current limiting resistor, can reduce the surge current on the impact of LED lamp beads.

Component list:

NO. Name PCB Silk Screen Value QTY
1 Metal Film Resistor R2 10ohm 1
2 Metal Film Resistor R3 200K 1
3 Capacitor R1 470K 1
4 Capacitor C1 1uf 400V 1
5 Capacitor C2 4.7uf 400V 1
6 Diode D1-D4 1N4007 4
7 Lamp housing     1
8 Lampshade     1
9 Light board     1
10 Power Board     1
11 Red Cable   60mm 1
12 Black Cable   60mm 1


Please clik here to download Instruction Manual:






I. Tested by ICStation's Outstanding Partner ELECTROJUANYU:

Learn More Details from the Video:
(The language in the video is Spanish)



II. Tested by ICStation's Outstanding Partner bzoli5706:

Learn More Details from the Video:
(The language in the video is English)



III. Tested by ICStation's Outstanding Partner ELECTROJUANYU:

Learn More Details from the Video:
(The language is English)
