diy kits sale_240228
Home > Wireless Module > Bluetooth Module > DC 48V 100W Bluetooth-Compatible Music Tesla Coil Loudspeaker, Wireless Transmission Experiment Tesla Coil Science Education Model Toy Gifts

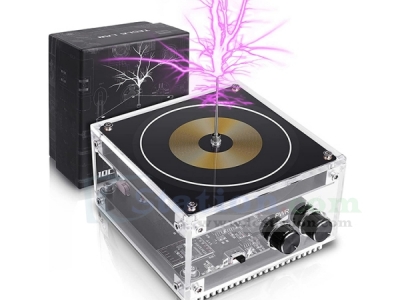

DC 48V 100W Bluetooth-Compatible Music Tesla Coil Loudspeaker, Wireless Transmission Experiment Tesla Coil Science Education Model Toy Gifts

GY19269
5 9
$89.99 $53.99 (only 96 pcs )
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Introduction:

  The Tesla coil is a famous invention of inventor Nikola Tesla.
It can be used to create high-voltage lightning and do various scientific experiments, such as wireless power transmission, wireless lighting, insulator withstand voltage test, and sewage treatment.

  Teachers use it to demonstrate to students the principle of boosting, high-frequency skin effect and so on.

  It is an SSTC Bluetooth Music Tesla Coil. Every time the Tesla coil discharges, the air vibrates. When the frequency of the discharge changes, the frequency of the vibration also changes, resulting in different tones. An ordinary spark gap Tesla coil can't do it.

  Generally, a solid-state Tesla coil is used. There is an arc extinguishing circuit board that controls the Tesla coil. Through that circuit board, the frequency of discharge can be controlled. If the music signal is input, the music will be released.


2.Feature:
  1>.Bluetooth square wave music play
  2>.Spark gap arc and music arc play mode
  3>.10cm long graceful arc
  4>.Wireless transmission and loudspeaker
  5>.Input circuit protection design

3.Parameter:
1>.Item name: SSTC Bluetooth Music Tesla Coil
2>.Work voltage:DC 48V 2A (Include AC 110V-240V to DC 48V adapter)
3>.Work power:100W(Max)
4>.Arc length:0~10cm(adjustable by potentiometer)
5>.Work Temperature:-40℃~85℃
6>.Work Humidity:0%~95%RH
7>.Tesla Coil Size:106x106x61mm
8>.Power Size:132x58x35mm



4.How to play:
1>.Prepare the square wave music in your phone.
2>.Plug the power adapter and Bluetooth switch.
3>.Connect the Bluetooth to your phone.
4>.Play music.
5>.Adjust the volume and frequency potentiometer to adjust the playback effect.

WARNING: Tesla coil will interfere with electronic products when working, which is the characteristic of Tesla coil itself. So, please don't let your phone get close to the tesla coil to avoid damage.This model is specially design for square wave music.It can only play square wave music, and perfect good.You can search and download the square wave music online.

5.How to connect phone Bluetooth:
1>.Plug the power adapter and active Bluetooth switch.
2>.Switch ON your phone Bluetooth and find model Bluetooth name: XFW-M18
3>.Connected and play music.
4>.If you still have problem, please contact us for help or google how to connect Bluetooth.

6.How to get square wave music:
1>.Download square wave music below, and unzip the file
2>.http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/GY19269-Music.rar
3>.If you still have problem, please contact us for help. We will send the file to your directly.

7.How to play square wave music in your phone
1>.Any application that supports MP3 format can play square wave music.
2>.If you don't have a suitable app to play square wave music, you can download an IOS app name VOX and import square wave music to the software.
3>.When playing square wave music, please turn the phone volume to the maximum.

8.Note:
  1.
Not suitable for people with electronic medical instruments.
  2. Do not touch the tesla while working.
  3. Please do not use this tesla under environment with flammable and explosive materials or closed coil and big size metal.

9.Package:
1pcs Bluetooth Music Tesla Coil
1pcs AC 100V-240V to DC 48V 2A Power Adapter
1pcs Discharge needle
2pcs Neon bubble

10.Bluetooth Tesla Square Wave Music:

  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_01.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_02.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_03.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_04.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_05.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_06.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_07.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_08.mp3
  • http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/TeslaMusic_09.mp3


11.Making square wave music:
  This method is suitable for making Tesla square wave music with PC.
  Prepare software: OpenMPT and Audacity and MP3 music file.
  OpenMPT get link: https://openmpt.org/download
  Audacity get link: https://audacity.onl/download/
  User can also not use these two software if you can use other methods to get square wave music.

12. User Manual:
