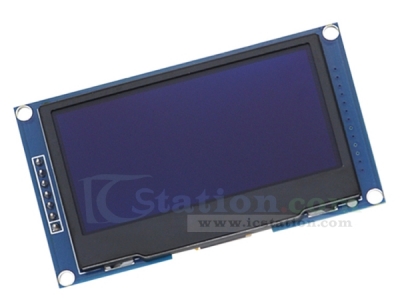

2.42in White OLED Display Screen Module 128x64 SPI IIC Control SSD1309 Driver

GY20844-1
5 9
$19.99 $13.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
   It is a 2.42in White OLED Display Screen Module 128*64 SPI/IIC Control SSD1309 Driver.

2.Feature:
  1>.Energy saving
  2>.Low power consumption
  3>.With a display screen, can clearly display data

3.Parameter:
  1>.Drive chip: SSD1309
  2>.Supported Interfaces: IIC/SPI
  3>.Resolution: 128*64
  4>.Display size: 2.42 inch
  5>.Display color: White
  6>.Drive voltage: 3.3-5V
  7>.Pin number: 7pin
  8>.Perspective >160°
  9>.Work Temperature: -25℃~85℃
  10>.Work Humidity: 5%~95%RH
  11>.Size: 72*44*11mm

4.Interface Definition:
  1>.GND: Power Ground
  2>.VCC: 3.3V
  3>.SCL: SPI/IIC Clock line
  4>.SDA: SPI/IIC Data line
  5>.RES: OLED Reset interface
  6>.DC: SPI Data/Command selection
  7>.CS: SPI data selection, low level effectively, need to pick up point can be hung up when not in use

5.Application:
  Smart phones
  intelligent on-board camera
  real-time display pictures
  battery management equipment
  IPC controller
  MP3/MP4 player
  mobile phone function
  portable medical equipment, game, etc.

6.Package:
  1pcs 2.42in White OLED Display Screen Module.
