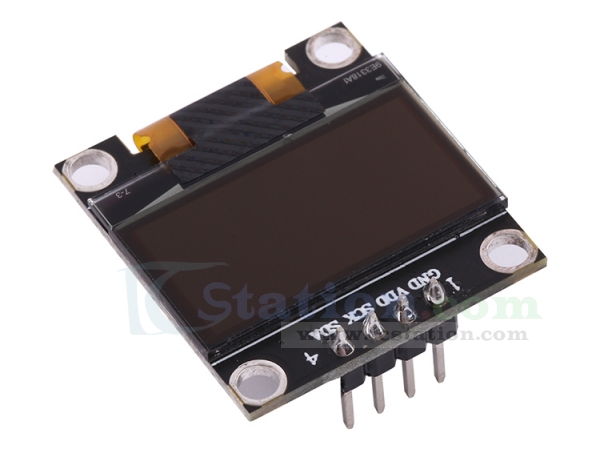

0.96 Inch Yellow Blue OLED Display Module Support IIC Communication 51 Single Chip Microcomputer 128*64 Resolution

GY19720-3
5 9
$10.99 $7.69
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
 It is a 0.96 inch OLED display module.It can be programmed to display the screen you want.

2.Feature:
 1).It supports multiple platforms,51 series,STM32/2,CSR chips.
 2).It has low power consumption and only needs 0.04W during normal operation.
 3).It supports IIC and only needs 2 I/O ports.
 4).It uses OLED to emit light and does not require a backlight.

3.Parameter:
 1).Product Name:0.96 inch OLED Display Module
 2).Screen Size:0.96 inches
 3).Resolution Size:128*64
 4).Display Color:Blue+Yellow
 5).Large Viewing Angle:160°(Min)
 6).Power Consumption:0.04W during normal operation
 7).Supply Voltage:DC 3.3V-5V
 8).Driver Chip:SSD1306
 9).Communication Method:IIC,only 2 I/O interfaces are required
 10).No Font Library:use modulo software to fetch fonts
 11).Backlight:OLED self-luminous,no need for backlight
 12).Work Temperature:-25℃~85℃
 13).Work Humidity:5%~95%RH
 14).Size:25*28*5mm

4.I2C,IIC interface definition:
 1).GND:negative pole of power supply
 2).VCC:Positive power supply
 3).SCL:clock line
 4).SDA:data line

5.Package:
 1pcs 0.96 inch OLED Display Module
