1.3 Inch OLED Expansion Board 3.3V Resolution 128x64 Support Raspberry Pi 4 with SPI and I2C Interface

GY19479
5 9
$15.99 $11.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:

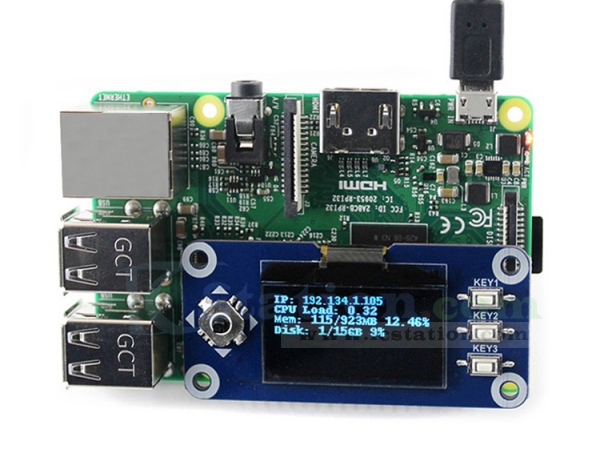

 It is a 1.3 inch OLED expansion board.It is a 1.3-inch OLED expansion board dedicated to Raspberry Pi,with 128x64 resolution,with internal controller,and communication via SPI or I2C interface.

2.Feature:
 1).Based on Raspberry Pi 40pin GPIO interface,suitable for Raspberry Pi series motherboards.
 2).It supports 4-wire SPI,3-wire SPI,I2C three interfaces,and the communication method can be selected through resistance.
 3).It can be equipped with a joystick and three buttons on board,which is simple and practical.
 4).It comes with a 128x64 resolution for clear viewing.

3.Parameter:
 1).Product Name:1.3 inch OLED Expansion Board
 2).Driver Chip:SH1106
 3).Support Interface:4-Wire SPI,3-Wire SPI,I2C
 4).Display Color:Blue
 5).Resolution:128x64
 6).Working VoSltage:3.3V
 7).Work Temperature:-25℃~85℃
 8).Work Humidity:5%~95%RH
 9).Size:65*30.2*10mm

4.Package:
 1pcs 1.3 inch OLED Expansion Board
