Yellow OLED Display Screen 1602 DC 3.3V-5V 16x2 Display Module for Arduino

12530
5 9
$18.49 $12.94 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Parameter:

NO. Parameter Value
1 Model 1602-OLED
2 Dot matrix 16*2
3 Exterior size 80.0*36.0*10.0mm
4 Visual area size 64.5*16mm
5 Controller WS0010 or EQV
6 Operating voltage 3.3V-5.0V
7 Specification OLED
8 Category Character
9 Operating temperature -40-80 Celsius
10 Viewing angle Ultra wide viewing angle up to +/-175 degrees
11 Built in fonts English, Japanese, Western Europe, Russian
12 Color Yellow letters


Size:



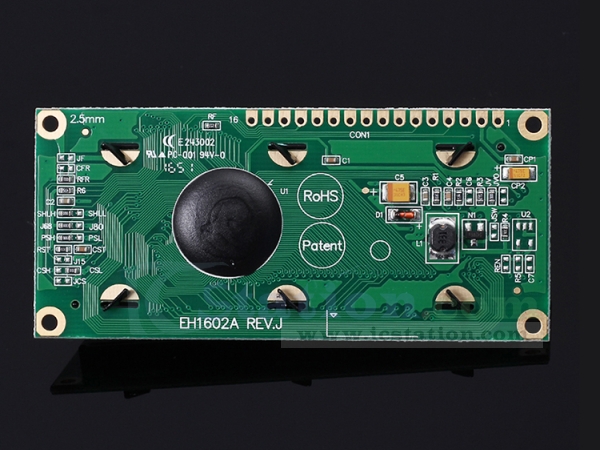

Interface Definition:

Pin No. Symbol Level Description
1 VSS 0V Ground
2 VDD 3.3V Supply Voltage for logic
3 NC --
4 RS H/L H:DATA, L: Instruction Code
5 R/W H/L H: Read(Module→MPU), L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data Bit 0
8 DB1 H/L Data Bit 1
9 DB2 H/L Data Bit 2
10 DB3 H/L Data Bit 3
11 DB4 H/L Data Bit 4
12 DB5 H/L Data Bit 5
13 DB6 H/L Data Bit 6
14 DB7 H/L Data Bit 7
15 NC --
16 NC --

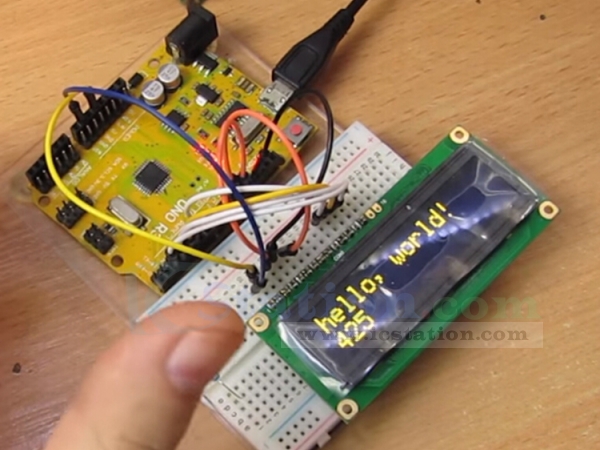

Tested by ICStation's Outstanding Partner arduinoLab:

Learn More Details in the Video:
