DC 4.5V-5.5V 87.0MHz-108.0MHz Wireless FM Radio Receiver DIY Kit

GY18972
5 9
$21.99 $16.05
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$22.10-6%Bundled Price:$20.78

Part 1: Introduction

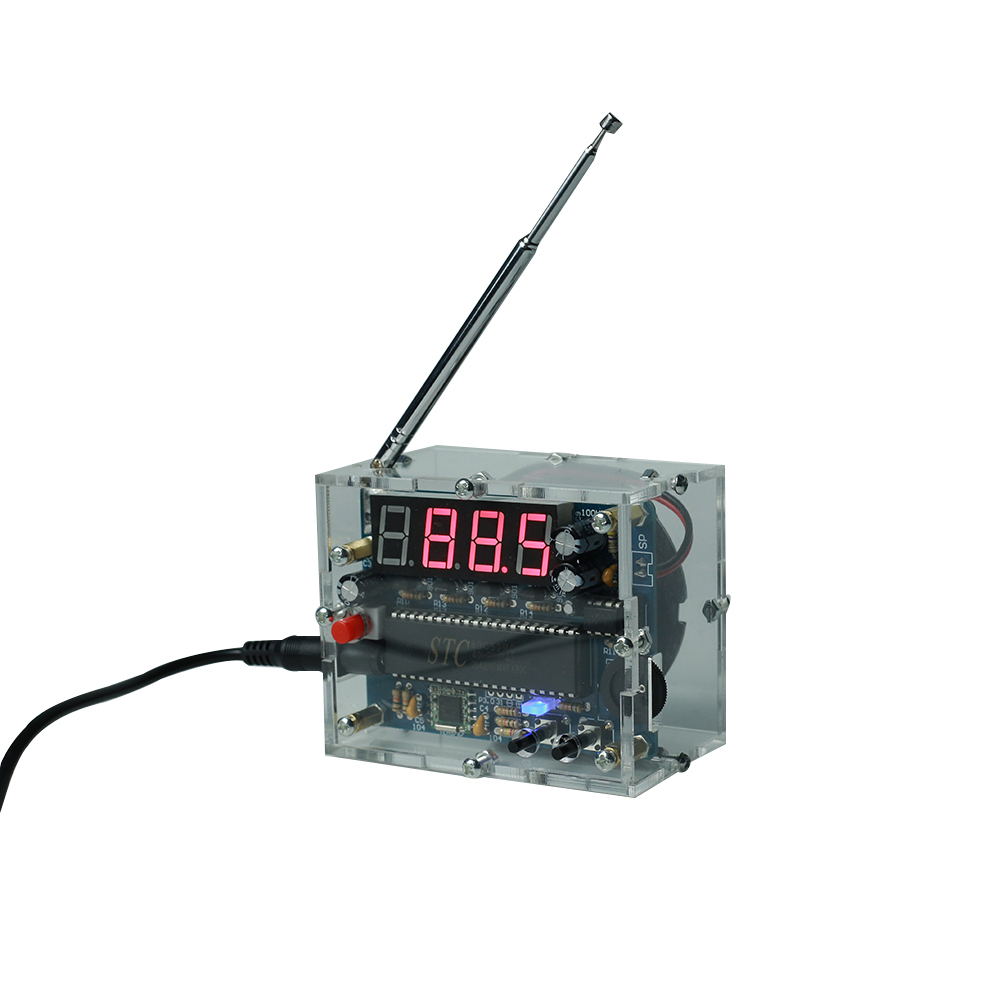

It is an 87.0MHz-108.0MHz Wireless FM Radio Receiver DIY Kit. It has a built-in 4-Bit Red Digital Tube display screen which can clearly display the receiving frequency.

Part 2: Feature
1.Automatically search for radio stations
2.Built-in volume adjustment
3.Automatic memory function after power off
4.Support 87Hz-108MHz receiver frequency
5.Built-in 5W power amplifier
6.Power saving mode with backlight off for 5 seconds

Part 3: Parameter
1.Product Name:FM Radio Receiver DIY Kit
2.Work Voltage:DC 4.5V~5.5V
3.Output impedance:8ohm
4.Output power:5W
5.Output channel:Mono
6.Receiver Frequency:87.0MHz~108.0MHz
7.Frequency accuracy:0.1MHz
8.Equivalent noise: >=30dB
9.Work Temperature:-40℃~85℃
10.Work Humidity:5%~95%RH
11.Size(Installed):83*69*53mm

Part 4: Using Methods
1.Press left button to decrease receiving frequency.
2.Press right button to decrease receiving frequency.
3.Rotate potentiometer to adjust the volume.

Part 5: Component List



Part 6: Schematic Diagram

Part 7: Application
1.Training welding skills
2.Student school
3.DIY production
4.Project Design
5.Electronic competition
6.Gift giving
7.Crafts collection
8.Home decoration
9.Souvenir collection
10.Graduation design
11.Holiday gifts

Part 8: Notice
1.The frequency can be adjusted continuously by keep press button.
2. It is a wireless module. So do not use it in an environment with signal interference.
3.The display can only show for 5 seconds and then enter to power saving mode.

Part 9: Installation Tips (PDF Version is available. Please contact orders@icstation.com if you need it)
1.User needs to prepare the welding tool at first.
2.Please be patient until the installation is complete.
3.The package is DIY kit.It need finish install by user.
4.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
5.Pay attention to the positive and negative of the components.
6.Strictly prohibit short circuit.
7.User must install the LED according to the specified rules.Otherwise some LED will not light.
8.Install complex components preferentially.
9.Make sure all components are in right direction and right place.
10.It is strongly recommended to read the installation manual before starting installation!!!
11.Please wear anti-static gloves or anti-static wristbands when installing electronic components.

Part10: Installation Steps (Please be patient)
Step 1: Install 1pcs 4.7ohm Metal Film Resistor at R7.
Step 2: Install 1pcs 220Kohm Metal Film Resistor at R3.
Step 3: Install 11pcs 10Kohm Metal Film Resistor at R1,R2,R4,R5,R8~R14.
Step 4: Install 1pcs TEA5767 Audio Receiver at TEA5767.Pay attention to the installation direction.
Step 5: Install 1pcs 13.56MHz Crystal Oscillator at Y1.
Step 6: Install 2pcs 22pF Ceramic Capacitor at C1,C2.
Step 7: Install 1pcs DIP-8 IC Socket at LM386.There is a mark on one end of the IC Socket and there is a mark on PCB where the IC Socket can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC Socket.
Step 8: Install 1pcs DIP-40 IC Socket at U1.There is a mark on one end of the IC Socket and there is a mark on PCB where the IC Socket can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC Socket.
Step 9: Install 1pcs 50Kohm Potentiometer at R6.
Step 10: Install 3pcs 0.1uF Monolithic Capacitor at C4,C5,C6.
Step 11: Install 4pcs TO-92 S9012 Transistor at Q1~Q4.
Step 12: Install 2pcs 10uF 25V Electrolytic Capacitor at C7,C8.Pay attention to distinguish between positive and negative.The Longer pin is positive pole.
Step 13: Install 1pcs Blue 2*5*7 LED at D13.Pay attention to distinguish between positive and negative.The Longer pin is positive pole.
Step 14: Install 1pcs Red 0.56" 4Bit Common Anode Digital Screen at 056SMG_4.Pay attention to the installation direction.
Step 15: Install 1pcs DC-005 Power Socket at 5V.
Step 16: Install 3pcs 100uF 50V Electrolytic Capacitor at C3,C9,C11. Pay attention to distinguish between positive and negative.The Longer pin is positive pole.
Step 17: Install 1pcs Self-locking Button at S4.
Step 18: Install 2pcs 6*6*20mm Black Button at S1,S2.
Step 19: Install 1pcs DIP-8 IC LM386.There is a mark on one end of the IC and there is a mark on PCB where the IC can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC.
Step 20: Install 1pcs DIP-40 IC STC89C52.There is a mark on one end of the IC and there is a mark on PCB where the IC can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC.
Step 21: Install 1pcs Antenna at ANT.Note that the antenna should be installed on the back of the PCB.
Step 22: Connect speaker to PCB at SP by 10cm red/black Cable. The speaker does not distinguish between positive and negative.
Step 23: Tear off the protective film on the surface of the acrylic shell.
Step 24: Fixed speaker on acrylic bottom plate by 4pcs M3*8mm Screw and 4pcs M3 Nut.
Step 25: Install 4pcs M3*8mm Screw and 4pcs M3 Nut on PCB.
Step 26: Install 4pcs M3*10mm Copper Pillar on PCB.
Step 27: Install 4pcs M3*8mm Screw and 4pcs M3 Nut on acrylic front plate.
Step 28: Install PCB module on acrylic front plate.
Step 29: Fix other acrylic plate by 12pcs M3*8mm Screw and 12pcs M3 Nut.
Step 30: Connect to power supply and enjoy the effect.
