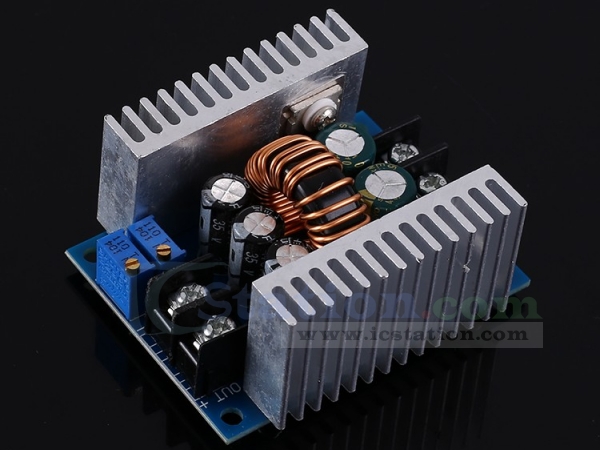

DC-DC 20A CVCC High Power Supply Module 6V-40V to 1.2V-35V Step Down Converter Buck Module LED Driver

14746
5 9
$9.99 $6.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
It is a DC-DC 20A high power boost buck constant voltage constant current non-isolated power supply module.It supports adjust output voltage and output current.

【20A CVCC Step-down Power Module w/Overcurrent Protection】--This power module can be used as a practical DC adjustable CVCC constant voltage constant current buck power supply module.

【Used as A Charger】--This boost power module can also be used as a simple charger. You can use it to charge rechargeable battery. In this situation, the output voltage should be the same with the battery’s work voltage. Check and follow the product images for specific using steps.

【Strong Self-protection Ability】--This buck power module has powerful protection functions, including Over Current Protection and Short Circuit Protection. And anti-backflow protection makes it possible to connect to the battery to charge directly.


2.Feature:
  1>.Constant voltage constant current
  2>.Adjustable output voltage
  3>.Adjustable output current
  4>.Non-isolated output
  5>.Support output short circuit protection

3.Parameter:
  1>.Input Voltage: DC 6V~40V
  2>.Module Type:Non-isolated
  5>.Output Voltage:DC 1.2V~35V
  6>.Output Current:20A (Max) It needs to add a heat sink if current is more than 10A)
  8>.Work frequency:150KHz
  9>.Conversion efficiency:96%
  10>.Over Current Protection:Yes
  11>.Short Circuit Protection:Yes
  12>.Output anti-backflow protection:Yes
  13>.Operating Temperature:-20℃~75℃
  14>.Operating Humidity:5%~95%RH

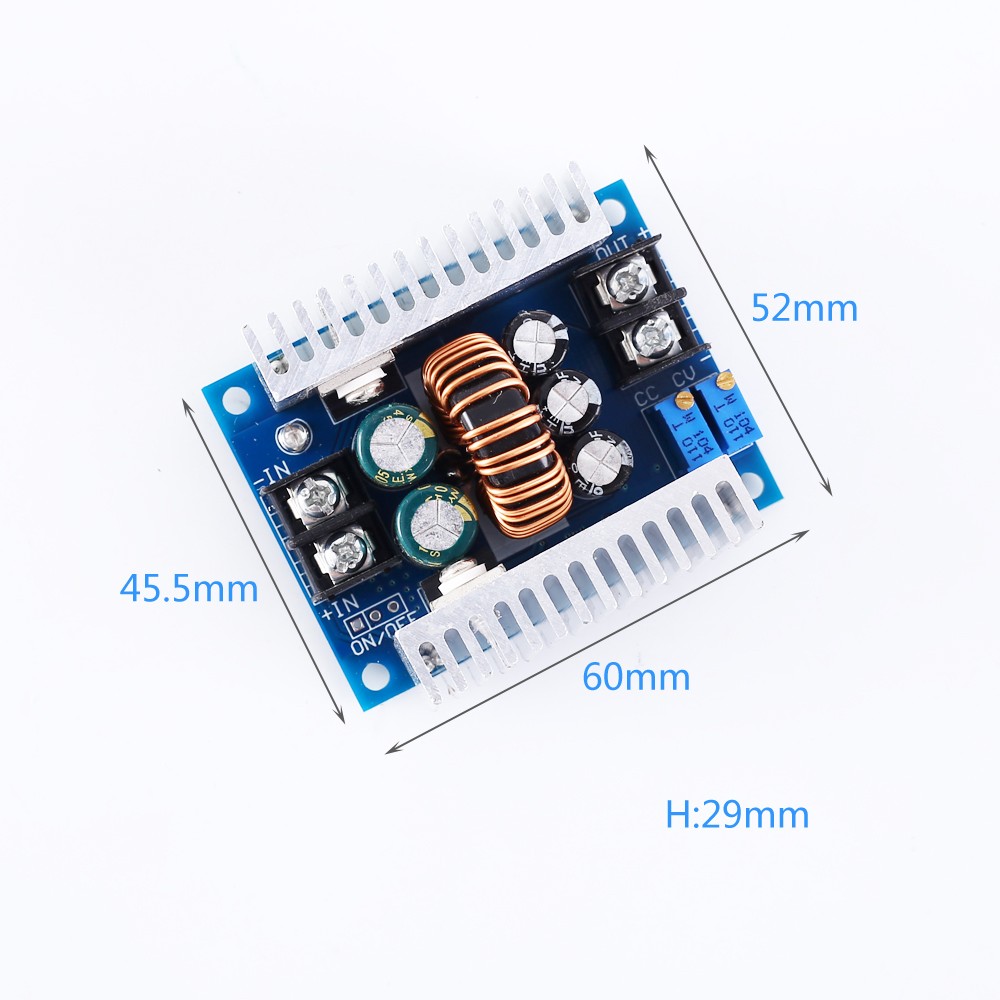

  15>.Module Size:60*52*29mm

4. Using Steps:

Adjust output voltage:
  Adjust CV potentiometer to change output voltage to meet required.

Adjust output current:
  1>.Rotate CC potentiometer counterclockwise more than 30 turns.
  2>.Connect to load such as LED and ammeter; or Connect to rechargeable battery (discharge off the electricity first and then recharge).
  3>.Rotate CC potentiometer constant current potentiometer clockwise to set output current to meet required.

6.Application:
  1>.Industrial automation
  2>.Scientific research equipment
  3>.LED lighting
  4>.Air purification
  5>.Civil equipment
  6>.Solar panel voltage regulator
  7>.Battery charging
  8>.Wind Turbines

7.Package:
  1pcs DC-DC 20A CVCC High Power Supply Module
