DC Motor Speed Controller, the full name of pulse width modulation is Pulse Width Modulator.Abbreviation PWM. DC motor governor is a device for adjusting the speed of a DC motor. DC motor has the characteristics of low speed and large torque which can not be replaced by the AC motor. Therefore, the equipment that regulates the speed of the DC motor - DC governor can be widely used. It is often used in DC load circuits due to its special properties. Lamp dimming or DC motor speed regulation, HW-1020 governor are made by pulse width modulation (PWM) principle. Such as Motor governor and PWM governor.
Industrial DC motor speed regulation, industrial conveyor belt speed regulation, lighting and lighting mediation, computer power supply cooling, DC fan, etc., have been widely used.
1>. High frequency 25Khz, the purer the signal;
2>. PWM can be adjusted 5%-100%;
3>. Support high current;
4>. High quality knob;
5>. Knob integrated design;
6>. Aluminum box, safe and reliable.
1>. Input voltage: DC 10-60V;
2>. Load power: 12V*10A=120W, 24V*10A=240W;
3>. Rated current: 10A;
4>. Peak current: 20A;
5>. Speed range: 5%-100%;
6>. PWM frequency: 25Khz;
7>. Potentiometer: resistance value 100K;
8>. Knob inner diameter: 8mm;
9>. The output voltage is 0-100% of the input voltage;
10>. Size(without Knob): 86mm*59mm*38mm;
11>. Size: 90*80*40mm.
1>. Turn the potentiometer counterclockwise until you hear the sound from potentiometer.
2>. Connect DC motor or lamp which meets the requirements at ‘MOTOR+’ and ‘MOTOR-’.
3>. Connect DC power supply at ‘POWER+’ and ‘POWER-’.
4>. Adjust knob to control speed for motor.
5>. If need to stop,you can turn the potentiometer counterclockwise until you hear the sound from potentiometer.
6>. Remove power supply before remove DC motor.
7>. Remove DC motor.
1>. Industrial DC motor speed regulation;
2>. Industrial conveyor belt speed regulation;
3>. Lighting and lighting mediation;
4>. Computer power supply cooling;
5>. DC fan.
1>. It is working for DC motor and just can connect to DC power supply.So please don’t connect AC 110V or 220V power supply!Otherwise it will damage the module!
2>. The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.
3>. Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.
4>. The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
5>. Please allow 1-3mm differs due to manual measurement.
1>. 1pcs DC Motor Speed Controller
2>. 1pcs Label

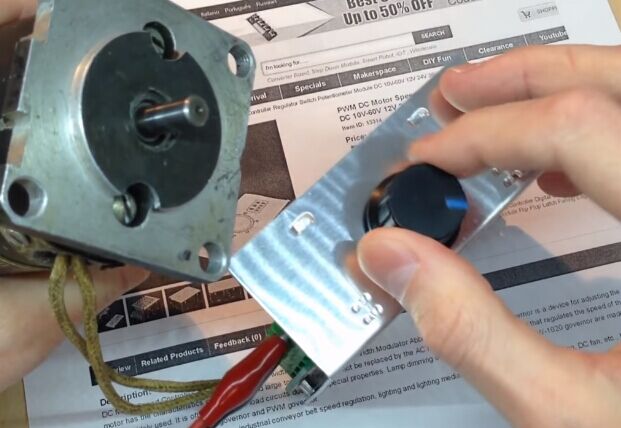

1. Tested by ICStation's Outstanding Partner E-Station:
Learn More Details in the Video:
(The language in the video is Russian)
