DC Power Supply Filter Module 35V 5A Low-pass Filter Voltage Regulator Module

GY20689
5 9
$12.99 $9.09
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
  The DC power filter module is a low-pass filter module designed by a combination of inductors and capacitors. It is suitable for power supplies with large ripples and can effectively reduce power supply ripples.

2.Feature:
  1>.One-piece power inductor, low dcr, high current
  2>.High quality SMD aluminum electrolytic capacitor, low esr, good filtering effect

3.Parameter:
  1>.Product name: DC power filter module
  2>.Model: LC-Power-LPF
  3>.Input voltage: 0~35V
  4>.Input current: 0~5A
  5>.Work Temperature: -25℃~85℃
  6>.Work Humidity: 5%~95%RH

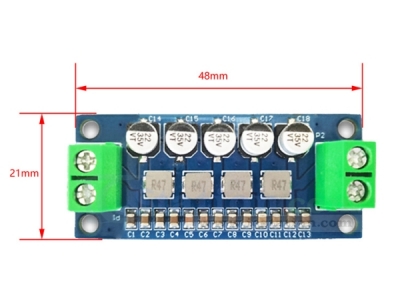

  7>.Size: 48mmx21mm

4. Instructions for use:

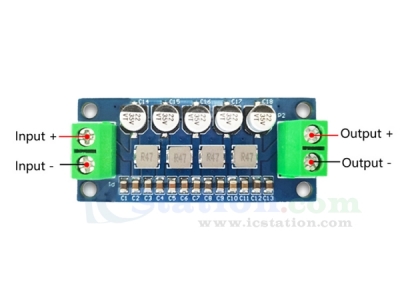

   Pay attention to the wiring input and output direction. The solution capacitor is on the top, the left side is the power input terminal, and the right side is the output terminal. The purpose of reducing the ripple can be achieved by placing the module at the output end of the power supply.

5.Package:
 1pcs LC-Power-LPF DC power fiilter module
