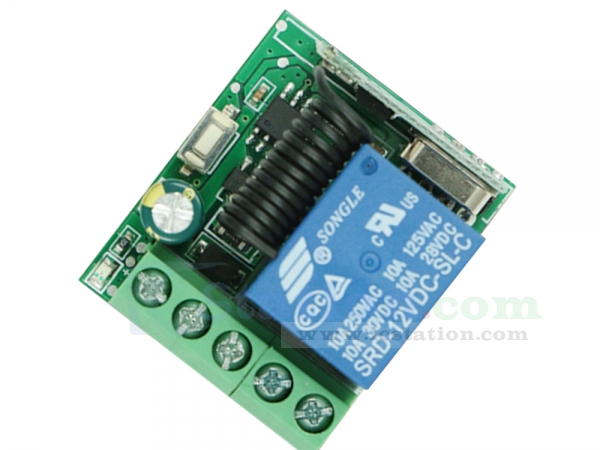

Wireless Remote Control Switch DC 12V Relay Module Lockless Self-locking Delay Controller

GY20767-1
5 9
$8.99 $6.29
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
   It is a Wireless Remote Control Switch DC 12V Relay Module Lockless/Self-locking/Delay Controller.

2.Feature:
  1>.Smart, convenient and safe
  2>.Stable and reliable performance
  3>.A controller can match multiple remote controls can also be a remote control with multiple controllers

3.Parameter:
  1>.Work voltage: DC 12V
  2>.Standby Current: 8mA
  3>.Work Frequency: 315MHZ
  4>.Load power: 1000W
  5>.Receive sensitivity: -105dbm
  6>.Frequency variance: ±0.2MHZ
  7>.Coding mode: Learning type
  8>.Working mode:Lockless, Self-lock, Interlock, delay
  9>.Modulation method: ASK
  10>.Size: 35*30*18mm

4.Application:
   Wireless remote control switch, can control all kinds of lamps, door access, curtains, lifting equipment, gate, lifter and security industry and other fields, is a new type of intelligent switch, can be indoor or more lamps and equipment control, stable and reliable performance.

5.Instructions for use:
  1>.Learning the code:
     1.1>.Lockless learning method: When you press the code matching button on the control board once, the LED indicator will blink once. When the LED indicator lights up, press the remote control key that requires code matching, and the LED indicator on the control board will blink for three consecutive times and the code matching is successful;

    1.2>.Self-lock learning method: After pressing the code matching button of the control board twice continuously, the LED indicator will blink twice. After the LED indicator lights up, press the remote control key that requires code matching, and the LED indicator of the control board will blink three times continuously and the code matching is successful;

     1.3>.Interlock learning method: Press the code key on the control board for 3 times continuously, and the LED indicator will blink for 3 times. After the LED indicator lights up, press the A button of the remote control that requires code matching, and the LED indicator on the control board will blink for 3 times continuously, and then press the B button of the remote control board, and the LED indicator on the control board will blink for 3 times continuously and the code matching is successful;

   1.4>.Delay learning method by 5 seconds: Press the code key on the control board for four times continuously, and the LED indicator will blink for four times. After the LED indicator lights up, press the remote control key that requires code matching, and the LED indicator on the control board will blink for three consecutive times and the code matching is successful;

     1.5>.Delay learning method by 10 seconds: Press the code key of the control board for 5 times continuously, and the LED indicator will blink for 5 times. After the LED indicator lights up, press the remote control key that requires code matching, and the LED indicator of the control board will blink for 3 times continuously and the code matching is successful;

     1.6>.Delay learning method by 15 seconds: After pressing the code key on the control board for 6 times continuously, the LED indicator will blink for 6 times. After the LED indicator lights up, press the remote control key that requires code matching, and the LED indicator on the control board will blink for 3 times continuously and the code matching is successful;

     1.7>.Delay learning method by 20 seconds: After pressing the code key of the control board for 7 times continuously, the LED indicator will blink for 7 times. After the LED indicator lights up, press the remote control key that requires code matching, and the LED indicator of the control board will blink for 3 times continuously and the code matching is successful.

  2>.Wiring instructions:
     2.1>.+:Connect the positive pole of the power supply;
     2.2>. -:Connect the negative pole of the power supply;
     2.3>.NO: Output , normally open;
     2.4>.COM: Output , common;
     2.5>.NC: Output , normal closed;

  3>.Erase data: After pressing the learning button on the control board for 8 consecutive times, it will automatically clear all the remote control to learn the code. After clearing, the original learning code remote control will no longer be controlled.

  4>.Interpretation of output mode:
     4.1>.Lockless: Press the same remote control button, press it, relay on, press it again. Relay closed;
     4.2>.Self-lock: Press the remote control "A" key, the relay open, press the remote control "B" key. Relay closed;
     4.3>.Interlock: Press the "A" key of the remote control to open the relay, release the "A" key of the remote control to close the relay. If you always press the "A" key of the remote control, then the relay is always open. When to release the remote control, the relay close.

  5>.Attention:
     5.1>.Do not operate with power on. Turn off the power supply for operation;
     5.2>.When the remote control voltage is insufficient, please replace the battery in time (when the remote control battery voltage is insufficient, the distance of the general remote control becomes closer);
     5.3>.When using wireless electronic products, pay attention to avoid metal masks, electronic equipment, electromagnetic field and other strong interference sources, avoid the remote control and the receiving distance is short or can not work properly;
     5.4>.Do not abnormal use of this electronic product, abnormal use will reduce the performance and life of the product, serious damage to the product will also bring hidden dangers to your safety;
     5.5>.In the process of use, if you have any questions, please contact us in time.

6.Package:
  1 pcs Wireless Remote Control Switch;
  1 pcs Remote Control.
