UM24 for APP USB 2.0 Color LCD Display Tester Voltmeter Ammeter Battery Capacity Tester Voltage Current Meter Cable Resistance Tester

13232
5 9
$21.99
Contact us for wholesale price
- OR - - OR - Add to Wish List

Cheaper Buy Together

$33.98-6%Bundled Price:$31.94

Description:

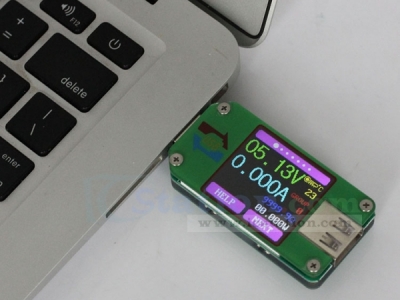

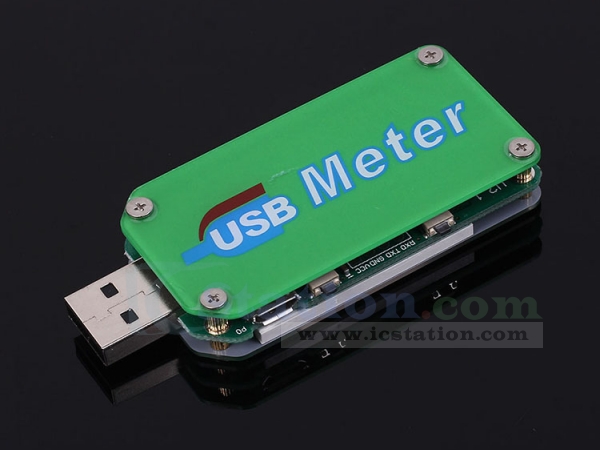

UM24 is a multifunctional USB test meter. It can test and display voltage/current/power/capacity/energy detection, fast charging identification, data storage, etc.

Features:
1>. 1.44-inch RGB LCD display.
2>. Adjustable multi-angle view.
3>. intelligent and convenient.
4>. Mini size.
5>. Universal USB interface.
6>. sandwich design.

Note:
1. UM24 is no communication version (Type A), UM24C is conmmunication version by bluetooth connection(Type B).
2. PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 3 kinds language, chinese, english and Russia)
3, User manual, PC software installation instruction and PC software and Android APP download link: https://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
4, For Android APP:
1) It only support android 5.0 and above.
2) Allow APP self-starting.
3) Allow stay after screen locked, not cleaned

Parameters:

No. Parameter Value
1 Product Model UM24
2 Voltage measurement range 4.50-24.00V
3 Voltage measurement resolution 0.01V
4 Voltage measurement accuracy +/-(0.2%+1 digit)
5 Voltage graphing range 04.5-24.0V
6 Current measurement range 0.000-3.000A
7 Current measurement resolution 0.001A
8 Current measurement accuracy +/-(0.8%+3 digit)
9 Current graphing range 0.00A-3.00A
10 Capacity accumulation rannge 0-99999mAh
11 Energy sccumulation range 0-99999mWh
12 Load impedance range 1.5-9999.9ohm
13 Temperature range -10~100Celsius/0~200Fahrenheit
14 Temperature measurement error +/-3Celsius/+/-6Fahrenheit
15 Screen brightness setting 0-5 level
16 Auto screen off time 1-9mins
17 Time measurement range 0-99h59min59s
18 Data Storage 10 Groups
19 Quick charge recognition mode QC2.0 QC3.0
20 Display screen 1.44 Inch color LCD display
21 Refresh rate 2Hz
22 Product size 71.2mmx31.8mmx11.3mm


Function:
1>. Display Voltage
2>. Display Current
3>. Display Power
4>. Display Capacity
5>. Display Energy detection
6>. Display Fast charging identification
7>. Data storage

Use Manual:
1>. Connect to USB equipment;
2>. Press any key for 3second to set system language.It is support Chinese and English.
3>. Press button to select display.

Application:
1>. Test power bank
2>. Test charger
3>. Test discharge load
4>. Test tablet
5>. Test cell phone
6>. Test USB equipment

Frequency asked questions:
Q1. Can it communicate with the PC??
A : No, it can not.

Q2. Does it have supporting software??
A : No, it does not have. It can be used directly.

Illustration:





1. Tested by ICStation's Outstanding Partner Electorials:

https://www.electorials.com/ge-project-002-um24-usb-meter-tutorial.html


2. Tested by ICStation's Outstanding Partner One Up The Sleeve Customs:

Learn More Details in the Video:
(The language in the video is English)





3. Tested by ICStation's Outstanding Partner arduinoLab:

Learn More Details in the Video:
(The language in the video is Russian)



4. Tested by ICStation's Outstanding Partner sjm4306:

Learn More Details in the Video:
(The language in the video is English)



5. Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:
(The language in the video is English)



6. Tested by ICStation's Outstanding Partner MakerTutor:

Learn More Details in the Video:
(The language in the video is English)
