Home > Wireless Module > Bluetooth Module > BK3266 Bluetooth-compatible Power Amplifier Board 2x30W/20W Support AUX Audio Input Support Change Name and Password

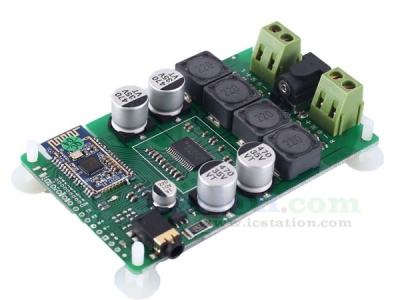

BK3266 Bluetooth-compatible Power Amplifier Board 2x30W/20W Support AUX Audio Input Support Change Name and Password

15187
5 9
$17.99 $12.59
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

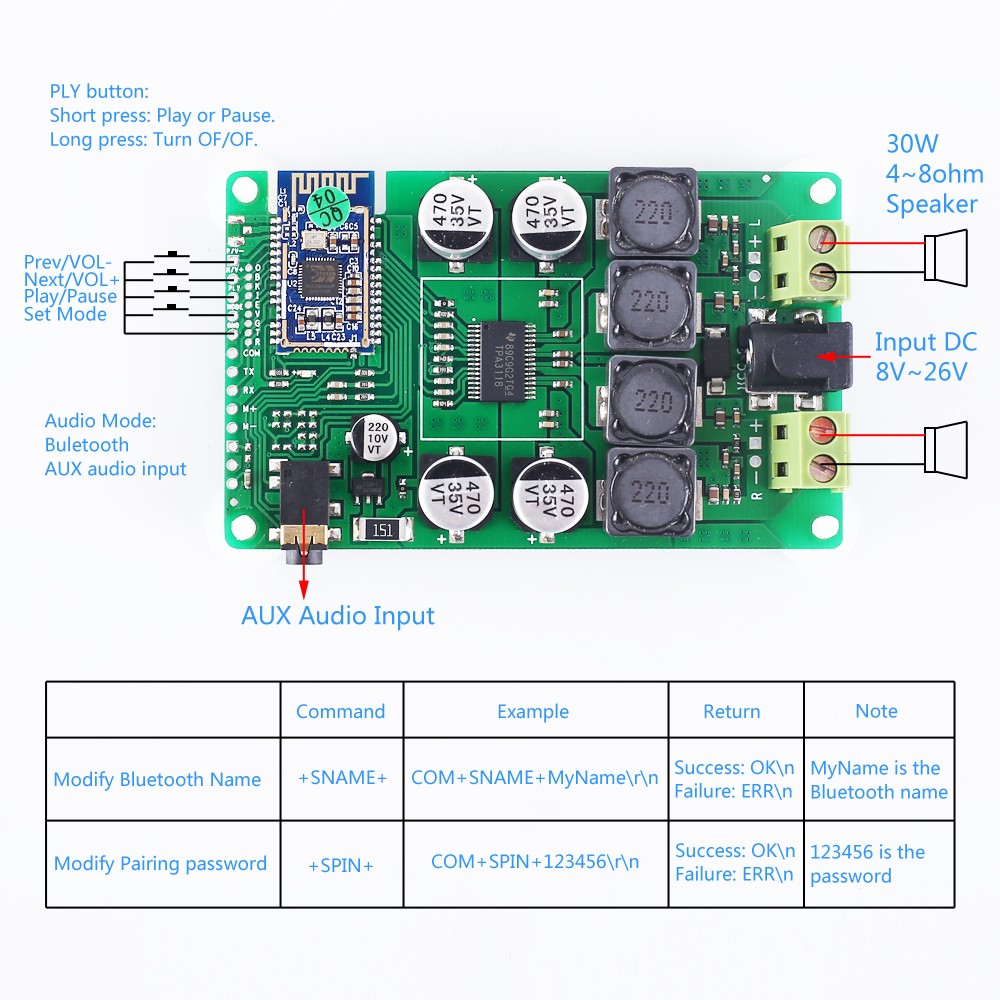

  It is a BK3266 Bluetooth 5.0 stereo audio transceiver module support amplifier module.It has a built-in amplifier module and can connect to speaker directly.It can also modify the Bluetooth name or password.

2.Feature:
  1>.Bluetooth 5.0
  2>.Audio transceiver module
  3>.Support for modifying the Bluetooth name
  4>.Support for modifying the Bluetooth pair password
  5>.Neutral prompt
  6>.Built-in amplifier module
  7>.Support reverse connection protection

3.Parameter:
  1>.Work Voltage:DC 8V-26V
  2>.Bluetoot:5.0
  3>.Support Bluetooth protocol:HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
  4>.Communication distance:10meter
  5>.Wrok frequency:2.402GHz~2.480GHz
  6>.Output impedance:4ohm~8ohm
  7>.Speaker power:30W*2
  8>.Work Temperature:-25℃~85℃
  9>.Work Humidity:5%~95%RH
  10>.Size:85*54*22mm

4.Package:
  1pcs BK3266 Bluetooth Wireless Transceiver Amplifier Module
