XH-M164 NE5532 Tone Amplifier Board Preamplifier Power Supply Dual Channel Audio Amplifier Board 4 Way Adjustment HiFi Board

12585
5 9
$9.99 $6.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:

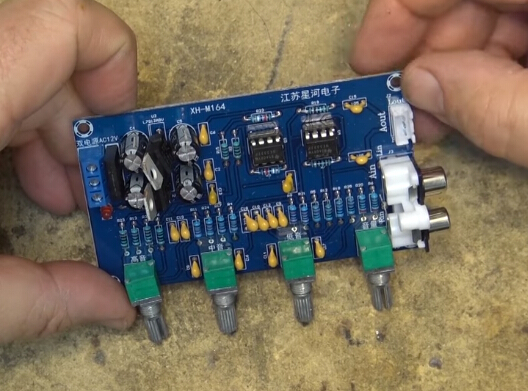

This is XH-M164 Audio amplifier board which is built in NE5532 chip.

Parameters:

Parameter Value
Power supply requirements AC double 12-15V
Power consumption 5W
Appearance size 100*60mm
Mounting hole distance K=M3 J=53*93
Front chip NE5532
Input interface Standard lotus socket
Output interface 2.54-3P
Vocal tract number Dual channel
Type of adjustment 4 way (treble + tenor + bass + total volume)


Instructions:
The general transformer has dual 12V front power supply and dual 24V post power supply at least 2 groups of output. The double 12V for tone board.
The main winding with double 24V or more after the stage.

Features:
1>. NE5532 is a high performance, low noise, dual operational amplifier IC.
2>. Excellent potentiometers. No rustling sound,which is caused due to poor contact and internal resistance instability.
3>. The output Department adopted a double lotus seat. Good contact and long service life.
4>. Dual and regulated power supply.
5>. After many improvements, the treble is crisp and melodious. The tenor is clear and sweet. The bass is deep.


Product Details:



#1. Tested by ICStation's Outstanding Partner J_RPM:


Learn More Details in the Video:
(The language in the video is Spanish)



#2. Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:
(The language in the video is English)



#3. Tested by ICStation's Outstanding Partner Bassblaster Audio Tech:

Learn More Details in the Video:
(The language in the video is English)



#4. Tested by ICStation's Outstanding Partner Ultr@ FX:

Learn More Details in the Video:
(The language in the video is German)
