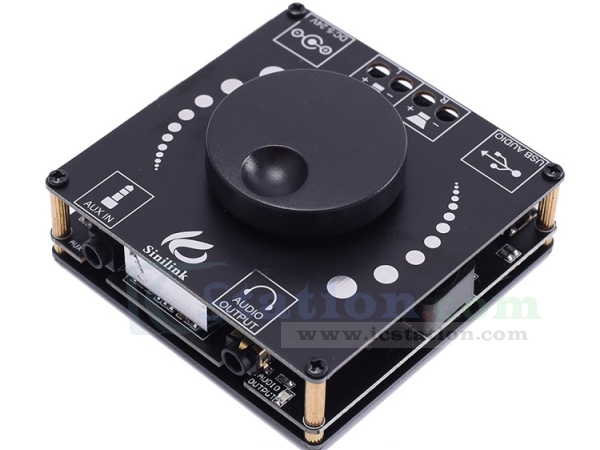

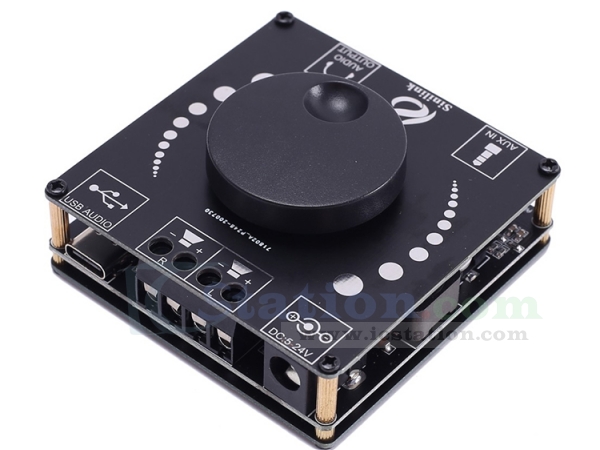

TPA3116D2 BLE5.0 50W+50W USB/AUX/PC Digital Amplifier Module Wireless Bluetooth-compatible HIFI Audio Stereo Module APP Controller

GY18666
5 9
$13.99 $9.79
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

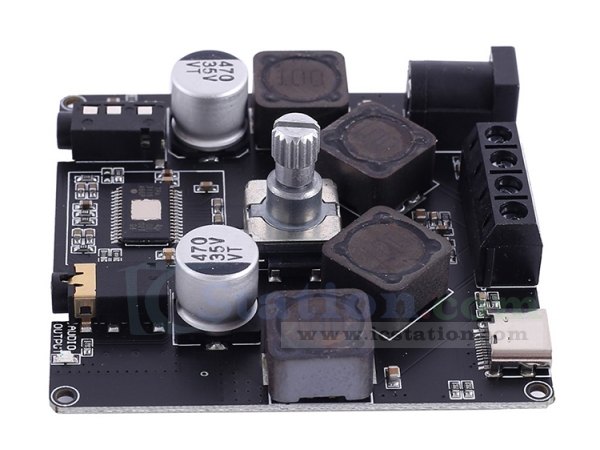

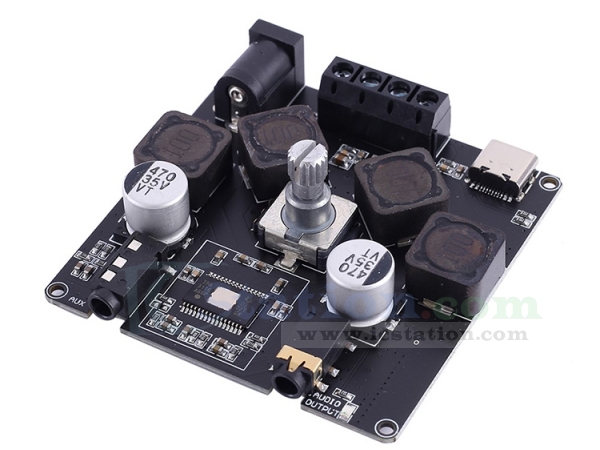

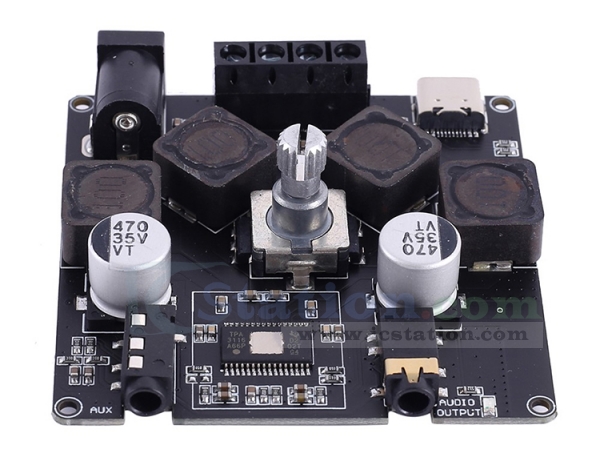

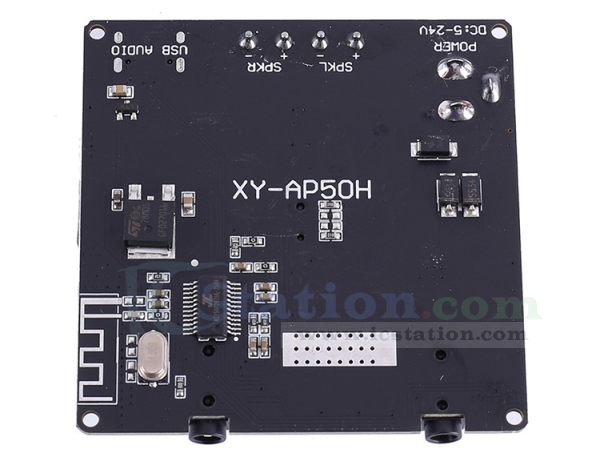

1.Description:
    XY-AP50H is a HIFI high-power Stereo Bluetooth Audio module.Dual channels audio signal output.Built-in amplifier module therefore it can connect to loudspeaker directly.It is ideal for DIY wireless Bluetooth speakers and transponders.
    It can work with APP Sinilink which can display can monitor the current voice source and switch Equalizer.

2.Features:
    1>.4 audio input modes
    2>.5 working protection modes
    3>.Dual channel stereo output
    4>.APP Bluetooth control
    5>.50W high power
    6>.Bluetooth automatic re-connection
    7>.Active/Passive audio output
    8>.HIFI High fidelity sound quality

3.Parameters:
    1>.Product Name:XY-AP50H 50W*2 HiFi Bluetooth Amplifier Module
    2>.Product Number:XY-AP50H
    3>.Working Voltage:DC 5.0V~27V
    4>.Amplifier IC:TPA3116D2
    5>.Control Type:Bluetooth/APP Sinilink Control
    6>.Audio input type:Bluetooth/AUX/U-disk/PC USB sound card
    7>.Bluetooth version:BLE 5.0
    8>.Communication distance:15meter(Max)
    9>.Channel:Dual channel stereo output
    10>.Output impedance:4ohm~8ohm
    11>.Match speaker:10W~200W
    12>.Audio output:Active/Passive audio output
    13>.Output Power:
        13.1>.Output power 10W+10W at 12V 8ohm
        13.2>.Output power 20W+20W at 12V 4ohm
        13.3>.Output power 20W+20W at 20V 8ohm
        13.4>.Output power 40W+40W at 20V 4ohm
        13.5>.Output power 30W+30W at 22V 8ohm
        13.6>.Output power 50W+50W at 21V 4ohm
    14>.Reverse connection protection:Yes
    15>.Over temperature protection:Yes
    16>.Short circuit protection:Yes
    17>.Overvoltage protection:Yes
    18>.Undervoltage protection:Yes
    19>.Working Temperature range:-40℃~85℃
    20>.Working Humidity Range:5%-95%RH
    21>.Module Size:60*60*25mm

4.Use steps:
    1>.Choose the right speaker and connect as shown in wiring diagram.
    2>.Connect to right power supply from input terminal.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing.
    3>.Turn ON Bluetooth in phone.
    4>.Select Bluetooth device ‘XinYi’ in your Bluetooth device listing.
    5>.LED indicator will keep ON and it means that module is successfully connected and is waiting for playing.
    6>.Module will playing music after select music in phone.LED indicator will keep slowly blinking.
    7>.Increase or Decrease volume by adjust potentiometer.
    8>.Press potentiometer to play or pause music.
    9>.Open APP Sinilink and register an account if need control by APP.
    10>.Click the dot on the right.
    11>.Select ‘Con Blu Dev’ and then Search Bluetooth.
    12>.Select devices ‘Sinilink-APP’ to connect module.
    13>.User can adjust volume, select next or previous, play/pause, select EQ.
    14>.Module will speak prompt voice if disconnected.

5.Application:
    1>.Modified speaker
    2>.Amplifier equipment
    3>.Car Bluetooth device

6.Note:
    1>.The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.
    2>.Recommended power supply voltage DC 5~27V.Module will be damaged if input voltage is more than 27V.
    3>.Please don’t use too long wires to avoid signal interference.
    4>.The format of U-disk must be FAT32 and the maximum memory is 32G.
    5>.It can only select one audio output mode between active output and passive audio output.
    6>.It is recommended to use a power supply which more than 2A.
    7>.Please read use manual and description before use.

7.Frequently Asked Questions:
    1.Q:How to choose a power supply adapter?
        A: The power supply of the module is very critical. The user must pay enough attention to the power supply. Otherwise it may not work properly.
        The higher the voltage and the higher the current then the better the output power. It is better to connect 3~4in speaker if user only have 12V 1A power adapter. It is no problem to connect 8~10in speaker if user have a power adapter which more than 19V 5A.
        The sound will be distorted after increase volume if the voltage is too low.
        If the current is too small, the speaker cannot be driven to work, and the speaker will pull the voltage low, resulting in abnormal operation or poor sound quality.
        It is recommended to use 18V/19V/24V power supply with current more than 3A.
        Adjust the volume to the maximum may be distorted and affecting the sound quality if input low power adapter such as 9V/12V 1A/2A adapter.

    2.Q:How to choose a speaker?
        A:Commonly used speakers are generally 4ohm~8ohm.The speaker no need distinguish between positive and negative polarity.
        It can also work properly if the speaker has low power such as 10W~30W. But it needs connect to low power adapter such as less than 15V to prevent damage to the speaker.
        User don't have to worry about the problem of the speaker damaged if connect to 50W~100W speaker.Module can connect 12V~24V.The higher the voltage selected, the greater the sound or power that can be output.

    3.Q:How to choose audio input mode?
        A: AUX has a higher priority than Bluetooth. USB Audio need switch by APP.

    4.Q:Why is the volume working normally when volume small, and there is turbidity after increase volume?
        A: Sound distortion.Please change the adapter power supply with higher voltage level.

    5.Q:Why is the volume working normally when volume small, and there is pause after increase volume?
        A: The input power is insufficient.Please change the adapter power supply with higher voltage level.
        Power supply itself intermittent power-off protection.Please change a match power adapter.
        The power of the power supply is too large so please reduce the power of the input power.
        The power amplifier board is seriously heated resulting in trigger overheat protection.So please increase the radiator.

8.Package:

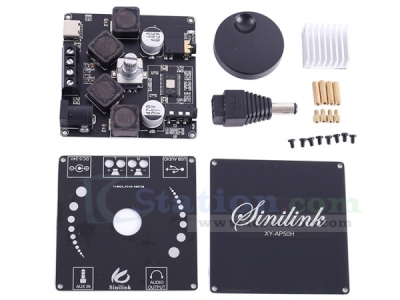

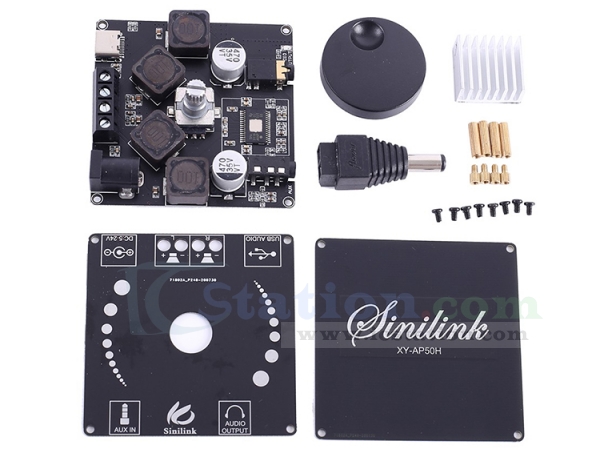

    1>.1pcs XY-AP50H 50W*2 HiFi Bluetooth Amplifier Module
    2>.1pcs heat sink with adhesive
    3>.1pcs 6mm knob cap
    4>.1pcs DC-005 power adapter
    5>.2pcs shell
    6>.4pcs M2*11mm Copper column
    7>.4pcs M2*3+5mm Copper column
    8>.8pcs M2*5mm screw
