1.Description:

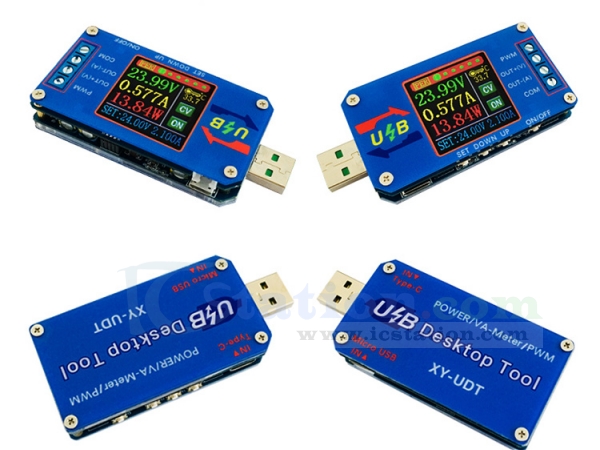

    XY-UDT is a multi-function voltage-ammeter. It can work in three mode: Power Supply Mode,Voltage-Ammeter Mode,PWM Mode.Its main function is to output voltage as a constant voltage constant current source and measure the voltage, current, capacity, energy, time, power, temperature, fast charge protocol and output PWM signal. It can be used to test the discharge time and discharge capacitance of the battery.

2.Features:
    1>.Multi-function test instrument
    2>.Three work mode
    3>.Constant voltage constant current source
    4>.Used as a voltmeter ammeter
    5>.PWM generator
    6>.Identify the fast charge protocol
    7>.Screen display direction can be changed
    8>.High precision
    9>.LCD HD display
    10>.Display temperature in Celsius and Fahrenheit
    11>.Support multiple protection functions
    12>.Multiple parameters are displayed simultaneously
    13>.Support power-down memory function
    14>.Support Micro/Type-A/Type-C USB input
    15>.Backlight brightness can be set
    16>.Exquisite shell

3.Basic Parameters:
    1>.Product name: XY-UDT Multi-Function Voltmeter Ammeter PWM Generator Power Supply Module
    2>.Model: XY-UDT
    3>.Input voltage:DC 3.5V~15V
    4>.Voltage resolution:0.01V
    5>.Current resolution:0.001A
    6>.Voltage precision:0.3%
    7>.Current precision:0.5%
    8>.Input type:Micro/Type-A/Type-C USB
    9>.Temperature measure range:0~80℃ or 32F~176F
    10>.Temperature resolution:0.1℃ or 0.1F
    11>.Temperature precision:+/-3℃ or 3F
    12>.Temperature calibration range:-10℃~10℃ or -18F~18F
    13>.Fast charge protocol:QC2.0,QC3.0,AFC,FCP,SCP
    14>.Display:1.44inch RGB LCD
    15>.Output short circuit protection:Yes
    16>.Output anti-backflow protection:Yes
    17>.Over voltage protection OVP:Yes
    18>.Over current protection OCP:Yes
    19>.Over power protection OPP:Yes
    20>.Under voltage protection LVP:Yes
    21>.Power chip automatic protection OEP:Yes
    22>.Over capacity protection OAH:Yes
    23>.Over discharging protection OPH:Yes
    24>.Work Temperature:-20℃~85℃
    25>.Work Humidity:0%~95%RH
    26>.Size:81*36*16mm

4.Power Supply Mode PER Parameters:
    1>.Output voltage:DC 0.60V~30.00V
    2>.Output current:0.000A~2.000A
    3>.Output power:15W
    4>.Capacity range:0~999999Ah
    5>.Energy range:999999Wh
    6>.Work time:00:00:00~99:99:99h

5.Voltage-Ammeter Mode VAH Parameters:
    1>.Measuring voltage range:DC 0.00V~50.00V
    2>.Measuring current range:0.00A~3.00A
    3>.Measuring power range:0.00W~150.0W
    4>.Capacity range:0~999999Ah
    5>.Energy range:999999Wh
    6>.Work time:00:00:00~99:99:99h

6.PWM Mode PWM Parameters:
    1>.Output voltage:DC 0.60V~30.00V
    2>.Output current:2A(Max and Unadjustable)
    3>.Work mode:NOR/FIN/PUL
    4>.Normal mode NOR frequency range:1Hz~240KHz
    5>.Normal mode NOR Duty cycle:0.00%~100%
    6>.Normal mode NOR Duty cycle resolution:1%
    7>.Precise mode FIN frequency range:1Hz~24.0KHz
    8>.Precise mode FIN Duty cycle:0.00%~100%
    9>.Precise mode FIN Duty cycle resolution:0.1%
    10>.Pulse mode PUL position pause time P-T:0s~65.635s
    11>.Pulse mode PUL negative pause time N-T:0s~(65.635-P-T)s
    12>.Pulse mode PUL pause number P-P:0~99999

7.Button Description:
    1>.Long press means need keep press for more than 2second.
    2>.SET button: It is used to select parameter which needs to be set.
    3>.DOWN button: It is used to switch display page in normal display mode. It is also can be used to select last parameter which needs to be set in set mode when select current parameter.It is also can be used to set parameter value when select one bit from one parameter.
    4>.UP button: It is used to switch display page in normal display mode. It is also can be used to select last parameter which needs to be set in set mode when select current parameter.It is also can be used to set parameter value when select one bit from one parameter.
    5>.ON/OFF button: Short press to turn ON/OFF output. Long press to switch display direction.

8.Power Supply Mode PER Mode:
    1>.PER mode can has 6 display interface. It can be switch display by DOWN or UP button.
    2>.Menu Line: The first line is the page prompt line.It can display current work mode PER and current display page.
    3>.The First Page:
        3.1>.Power Main Interface.
        3.2>.It can display output voltage V, output current A, output power W, temperature C or F, CC/CV output mode, OVP/OCP/OPP/LVP/OEP/OPH/OAH protection mode, output ON/OFF status.
        3.3>.The last line display output voltage and output current which can be set.
        3.4>.It just can only display one of CC/CV/OVP/OCP/OPP/LVP/OEP/OPH/OAH at the same time.
        3.5>.The built-in temperature is displayed by default. If an external temperature sensor is connected, the temperature area shows a blue background.
    4>.The Second Page:
        4.1>.The first line display output capacity.
        4.2>.The second line display output energy.
        4.3>.The third line display output time.This time can be cleared by press SET button after selected.
        4.4>.The fourth line display input time.It can not be cleared
        4.5>.The last line display output voltage and output current which can not be set in this page.
    5>.The Third Page:
        5.1>.It display output voltage and output current graph.And this page can not be set in this page.
    6>.The Fourth Page:
        6.1>.The first line display under voltage protection LVP value. The default value is 4.8V and it can be reset.
        6.2>.The second line display over voltage protection OVP value.The default value is 31V and it can be reset.
        6.3>.The third line display over current protection OCP value.The default value is 2.1A and it can be reset.
        6.4>.The fourth line display over power protection OPP value.The default value is 15.5W and it can be reset.
        6.5>.The fifth line display over discharging protection OPH value.The default value is 000:00h. It means turn OFF this function.
        6.6>.The sixth line display over capacity protection OAH.The default value is 00.000Ah. It means turn OFF this function.
    7>.The Fifth Page:
        7.1>.Display module supports fast charging protocols and current USB supported protocol and then module’s default fast charging mode.
    8>.The Sixth Page:
        8.1>.The first line display current work mode. The work mode can be selected from PER, VAH and PWM.
        8.2>.The second line display current LCD brightness.It can be selected from BL0~BL5.
        8.3>.The third line display current temperature unit and check value.The temperature unit can be Celsius and Fahrenheit. Check value can be -10℃~10℃ or -18F~18F.
        8.4>.The fourth line display current power on state.It can be selected as ON or OFF.
        8.5>.The fifth line display current background color and font color of Menu Line. They are available in 8 colors in each parameters.
        8.6>.The last line display output voltage and output current which can not be set in this page.

9.Voltage-Ammeter Mode VAH Mode:
    1>.VAH mode can has 5 display interface. It can be switch display by DOWN or UP button.
    2>.Menu Line: The first line is the page prompt line.It can display current work mode PER and current display page.
    3>.The First Page:
        3.1>.Power Main Interface.
        3.2>.It can display measured voltage V, measured current A, measured power W, measured capacity Ah, measured energy Wh, measured time, temperature C or F, measure ON/OFF status.
        3.3>.The last line display output voltage and output current which can be set.
        3.4>.The built-in temperature is displayed by default. If an external temperature sensor is connected, the temperature area shows a blue background.
    4>.The Second Page:
        4.1>.It display measured voltage and measured current graph.And this page can not be set in this page.
    5>.The Third Page:
        5.1>.The first line display under voltage protection LVP value. The default value is 4.8V and it can be reset.
        5.2>.The second line display over voltage protection OVP value.The default value is 31V and it can be reset.
        5.3>.The third line display over current protection OCP value.The default value is 2.1A and it can be reset.
        5.4>.The fourth line display over power protection OPP value.The default value is 15.5W and it can be reset.
        5.5>.The fifth line display over discharging protection OPH value.The default value is 000:00h. It means turn OFF this function.
        5.6>.The sixth line display over capacity protection OAH.The default value is 00.000Ah. It means turn OFF this function.
    6>.The Fourth Page:
        6.1>.Display module supports fast charging protocols and current USB supported protocol and then module’s default fast charging mode.
    7>.The Fifth Page:
        7.1>.The first line display current work mode. The work mode can be selected from PER, VAH and PWM.
        7.2>.The second line display current LCD brightness.It can be selected from BL0~BL5.
        7.3>.The third line display current temperature unit and check value.The temperature unit can be Celsius and Fahrenheit. Check value can be -10℃~10℃ or -18F~18F.
        7.4>.The fourth line display current power on state.It can be selected as ON or OFF.
        7.5>.The fifth line display current background color and font color of Menu Line. They are available in 8 colors in each parameters.
        7.6>.The last line display measured voltage and measured current which can not be set in this page.

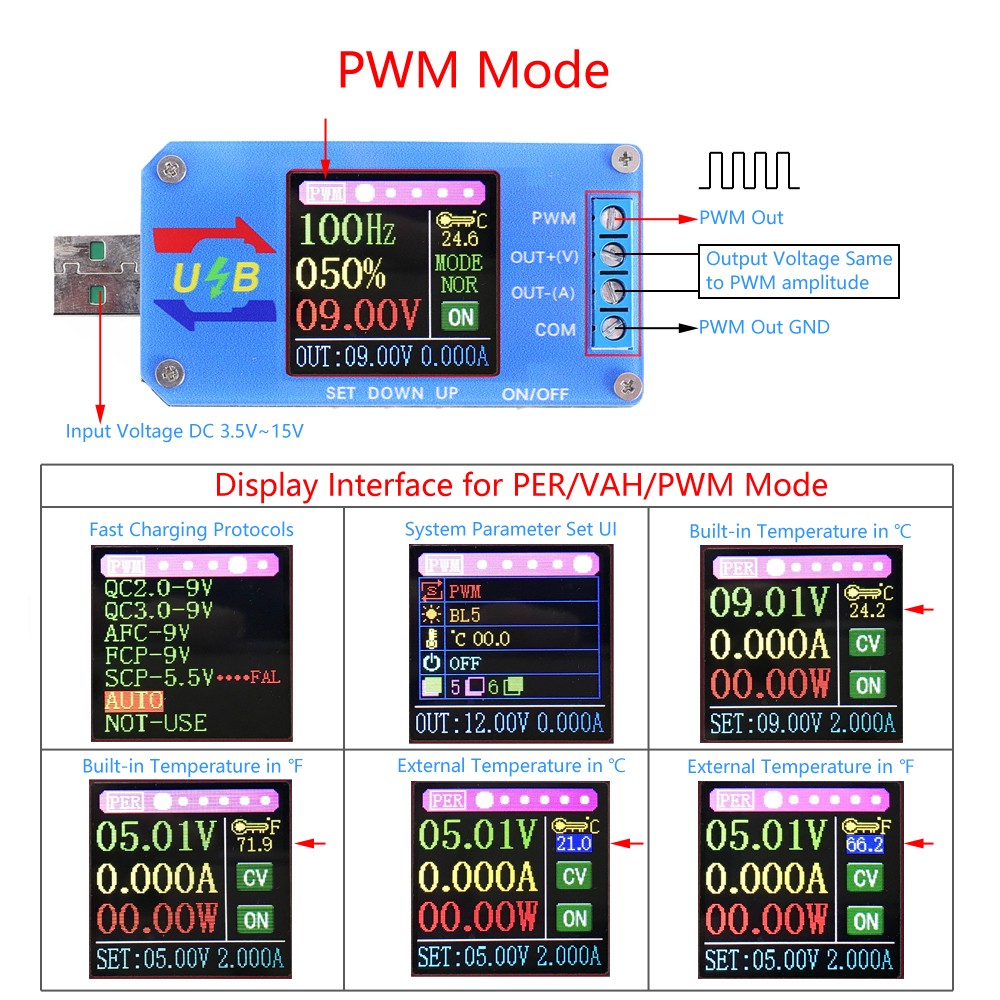

10.PWM Mode:
    1>.PWM mode can has 5 display interface. It can be switch display by DOWN or UP button.
    2>.Menu Line: The first line is the page prompt line.It can display current work mode PER and current display page.
    3>.The First Page:
        3.1>.Power Main Interface.
        3.2>.It can display output frequency, output duty cycle, output voltage, work mode, temperature C or F, ON/OFF status.
        3.3>.The last line display output voltage and output current which can not be set.
        3.4>.The built-in temperature is displayed by default. If an external temperature sensor is connected, the temperature area shows a blue background.
        3.5>.It has three work mode:NOR/FIN/PUL. NOR and FIN mode display output frequency, output duty cycle, output voltage. PUL mode display Position Pause Time P-T, Negative Pause Time N-T, Pause Number P-P, Pulse Amplitude AMP.
    4>.The Second Page:
        4.1>.It display output frequency and output duty cycle graph.And this page can not be set in this page.
    5>.The Third Page for NOR and FIN mode:
        5.1>.The first line display Frequency Upper Limit value F-Max. The default value is 240KHz and it can be reset.
        5.2>.The second line display Frequency Lower Limit value F-Min. The default value is 0Hz and it can be reset.
        5.3>.The third line display Duty Cycle Upper Limit value D-Max. The default value is 100% and it can be reset.
        5.4>.The fourth line display Duty Cycle Lower Limit value D-Min. The default value is 000% and it can be reset.
        5.5>.The fifth line display Output Amplitude Upper Limit value A-Max. The default value is 30V and it can be reset.
        5.6>.The sixth line display Output Amplitude Lower Limit value A-Min. The default value is 0.6V and it can be reset.
    6>.The Third Page for PUL mode:
        6.1>.The first line display Delay Start Time value S-DLY. The default value is 0S and it can be reset.
        6.2>.The second line display Position Pause Time Upper Limit value P-Max. The default value is 30S and it can be reset.
        6.3>.The third line display Position Pause Time Lower Limit value P-Min. The default value is 0S and it can be reset.
        6.4>.The fourth line display Negative Pause Time Upper Limit value N-Max. The default value is 30S and it can be reset.
        6.5>.The fifth line display Negative Pause Time Lower Limit value N-Min. The default value is 0S and it can be reset.
        6.5>.The sixth line display Output Amplitude Upper Limit value A-Max. The default value is 30V and it can be reset.
        6.6>.The seventh line display Output Amplitude Lower Limit value A-Min. The default value is 0.6V and it can be reset.
    7>.The Fourth Page:
        7.1>.Display module supports fast charging protocols and current USB supported protocol and then module’s default fast charging mode.
    8>.The Fifth Page:
        8.1>.The first line display current work mode. The work mode can be selected from PER, VAH and PWM.
        8.2>.The second line display current LCD brightness.It can be selected from BL0~BL5.
        8.3>.The third line display current temperature unit and check value.The temperature unit can be Celsius and Fahrenheit. Check value can be -10℃~10℃ or -18F~18F.
        8.4>.The fourth line display current power on state.It can be selected as ON or OFF.
        8.5>.The fifth line display current background color and font color of Menu Line. They are available in 8 colors in each parameters.
        8.6>.The last line display output voltage and output current which can not be set in this page.

11.Use steps:
    1>.Connect work voltage for USB.
    2>.Short press button DOWN or UP to select display the last page.
    3>.Short press button SET to select set work mode. The background of the parameter is also displayed when the parameter is selected.
    4>.Short press button DOWN or UP to select work mode from PER/VAH/PWM to meet required.
    5>.Automatically save parameter after 6second or keep press SET button about 2second to save parameter.
    6>.Short press button DOWN or UP to select display the last page.
    7>.Short press button SET to select set work mode which needs to be set.
    8>.Short press button SET again to select which bit need to set.
    9>.Short press button DOWN or UP to set parameter value.
    10>.Short press button DOWN or UP to select next parameter when selected one complete parameter by SET button.
    11>.Set other parameters as the same methods.
    12>.Remove work power supply.
    13>.Connect load at output terminal.
    14>.Re-power ON and use this item.

12.Application:
    1>.Ordinary power supply
    2>.Battery charger
    3>.LED drive power
    4>.Square wave signal generator, generating square wave signal for experimental development
    5>.Used to generate a square wave signal that controls the motor driver
    6>.Generate adjustable pulses for use by the MCU
    7>.Dimmer or Speed governor
    8>.Load tester
    9>.Battery discharge tester
    10>.Factory equipment inspection
    11>.Power supply aging tester
    12>.Auxiliary measurement charger Output current capability
    12>.Charger Factory Batch Aging test use

13.Note:
    Please read use manual and description before use.

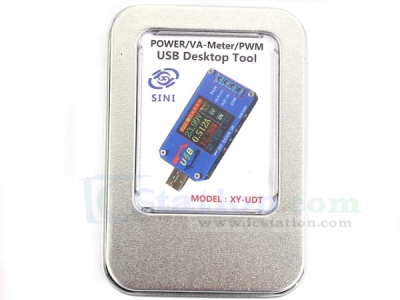

14.Package:
    1>.1pcs XY-UDT Multi-Function Voltmeter Ammeter PWM Generator Power Supply Module
    2>.1pcs 30cm Temperature Sensor
    3>.1pcs Mini Screwdriver

There are currently no product reviews.

First we should say that ICStation doesn't accept any form of pay on delivery.Items used to be shipped after receiving the order info and payment.

1) Paypal Payment

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at icstation.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).



We are PayPal Verified



2) West Union




We know that some of you do not have the Paypal account.

But please take it easy. You can use West Union payment method.
Learn more at West Union at www.westernunion.com.

For the receiver info, please contact us at orders@icstation.com.

3) Bank Transfer / Wire Transfer / T/T


Bank Transfer / Wire Transfer / T/T payment methods are accepted for orders which the total price is up to US$500. The bank will charge about US$60 for the transfer fee if we do the payment in these ways.

For other payment method, please contact us at orders@icstation.com for more details.

We offer wordwide FREE shipping for all orders from $20 usd!

1. Hongkong / Sinapore Airmail

(1) Shipping Fee: $3
All orders will be shipped by standard normal post with tracking number service, which can be tracked on site.

If the total price is more than USD20, items will be shipped free.

That's to say, customer do not need to pay extra USD3 for the registered shipping fee.

(2) Shipping time
Shipping time is 7-20 business days to most of countries; please view below table for exactly shipping time to your location.

7-15 working days to: Most of Asia countries
10-16 working days to: USA , Canada , Australia , UK , Most of Europe countries
13-20 working days to: Germany , Russia
18-25 working days to: France , Italy , Spain , South Africa
20-45 working days to: Brazil , Most of South America countries

2. EMS/DHL/FedEx Express

(1)Shipping Fee: Free for the order which meet the following requirements
Total price of the order >= 200USD or Total weight of the order >= 2.2KG

When the order meets to one of the above requirement, it will be shipped for FREE via EMS/DHL/FedEx Express to below country.
Asia: Japan , South Korea , Mongolia . Malaysia , Singapore , Thailand , Vietnam , Cambodia , Indonesia , Philippines
Oceania: Australia , New Zealand , Papua New Guinea
Europe& America: Belgium, Britain, Denmark, Finland, Greece, Ireland, Italy, Luxembourg, Malta, Norway, Portugal, Switzerland, Germany, Sweden, France, Spain, USA, Austria, Canada
Note: Shipping Fee to other countries, please contact orders@ICStation.com

(2) Shipping Time
Shipping time is 3-5 working day (about 1 week) to most of countries.

Because the package would be returned to the sender if it had not been signed by the receiver in 2-3 day (DHL) or 1 week (EMS,) or 2 weeks (Registered Email), please pay attention to the arriving time of the package.

Note:

1) APO and PO Box Addresses

We strongly recommend that you provide a physical address for order delivery.
Because that DHL and FedEx are unable to deliver items to APO or PO BOX addresses.

2) Contact Phone Number
Receivers' contact phone number is required by express shipping agency for the package delivery. Please provide us with your latest phone number.

3. Note
1) Delivery Time of mixed orders with items in different Shipping Status should be calculated using the longest estimate times listed.
2) Chinese Holiday Reminder: During annual Chinese holidays, services from certain suppliers and carriers may be affected, and delivery for orders placed around the following times may be delayed by 3 - 7 days: Chinese New Year; Chinese National Day,etc.
3) Once your order is shipped, you will receive an email notification from icstation.com
4) Track the order which with tracking number via below links:

Registered Airmail: www.17track.net/en
FedEx: www.fedex.com

Your Recent History
