XH-M173 Karaoke Microphone Amplifier Module Stereo PT2399 AC 12V Dual Power Supply Audio Amplifier Module

13140
5 1
$10.59 $7.41
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:
This type of karaoke board adopts PT2399 chip, which plays the role of echo sound effects. PT2399 is a typical karaoke echo processing integrated circuit. It is widely used in CD, VCD, DVD, TV and karaoke machines.
The prime amplifier of the microphone used two classic dual-transport NE5532. It is used for audio signal amplification and effective processing. The board is with two-channel microphone input and audio hybrid technology. You can enjoy the fun of karaoke.

Parameters:

No. Parameter Value
1 Model XH-M173
2 Name karaoke reverberation board
3 Output load Post - level amplifier
4 Chip selection dual power AC12V
5 Machine size 100*57*17mm
6 Net Weight 62g


Using Attention:
1>. Power supply is with AC double 12V transformers.
2>. The audio output part of this board needs to be connected to the amplifier plate, not the stereo.
3>. As for the scream, now all of the k-song products, when the microphone is near the speakers, they will scream. So don't hold the microphone to the speakers.

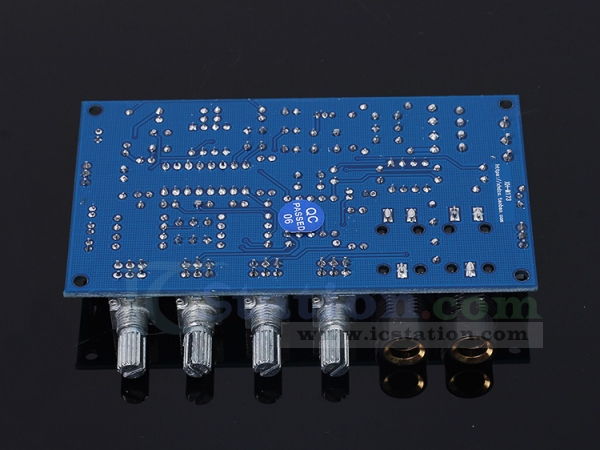

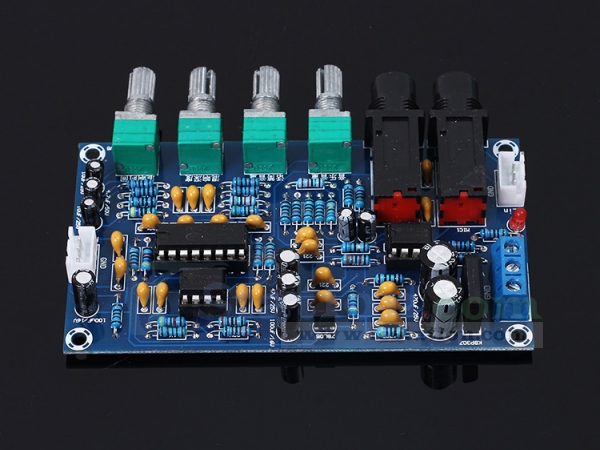

Product Details:

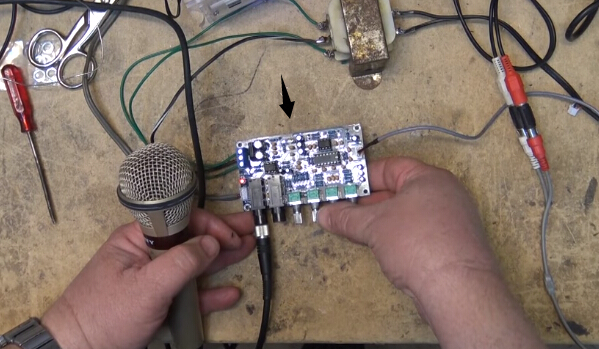

Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2019-08-05 03:07:00
Can I power it up using a DC +/-12V dual output power supply module?
