20mm 113KHz Ultrasonic Mist Maker Fogger Atomizer Ceramic Discs with Power Driver Board for Desktop Mini Humidifier

11434
5 9
$7.79 $5.45
Quantity5+10+30+50+
Price$5.75$5.45$5.20$4.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:

1. Diameter:20mm
2. Operating Voltage:3.7-12V
3. Frequency:113+/-3KHz
4. Quiescent Capacitor:3000+/-15%PF
5. Rated Voltage:70V (max)
6. Rated Power:2.5W (normal use 1.5W)

7.Applications: for medical micro atomization, DC005 humidifier perfume atomizer etc.

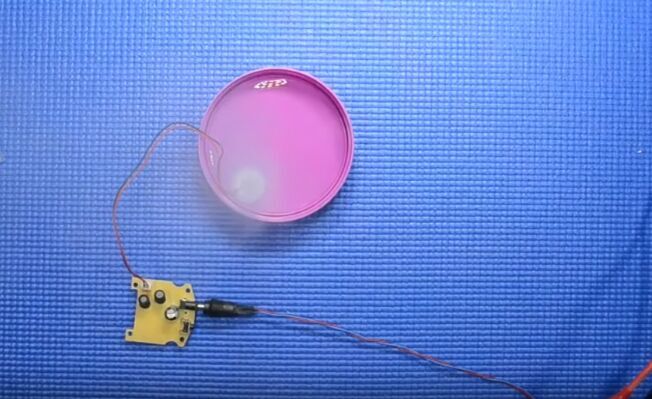

8. It can work well over the water's surface with more finer particles and higher spray level.



Question & Answer:

Q1: Is this module compatible with a common piezo element?
A: Sorry, no.

Q2: What are the dimensional measurements of the driver?
A: Size: 37.5*43mm

Q3: Can you supply the wire which is used to power this kit?
A: Sorry, we don't supply the cable, you can use cable with interface of DC 3.5*1.35mm

Q4: Does it have an automatic shut off when water is gone?
A: Sorry, no. It can not automatic shut off, so you must keep it on water.

Q5: Does the diameter 20mm include the rubber part?
A: No, it doesn't. The dia is 22mm if including rubber part.

Q6: it will be being used as a model boat fogged so I need to know how deep the water can be in the fogged for it to work right,
A: There is No requirement about the deep of water. But it can not be placed in the water, can only be placed on the water surface, regardless of the depth of the water

Q7: Hello, is there a water level sensor on the board?
A: Sorry, no, there is only one atomizer

Q8: What is the functional purpose of the rubber jacket around the disk?
A: Fixed and sealed, easy to install the atomizer

Q9: Could you please provide the circuit diagram?
A:There is no circuit diagram for this module. It can work normally by connected to the USB power supply directly.



1. Tested by ICStation's Outstanding Partner RobertNetworks:





Learn More Details in the Video:
(The language in the video is Spanish)

2. Tested by ICStation's Outstanding Partner ELECTROJUANYUS:

Learn More Details in the Video:
(The language in the video is Spanish)
